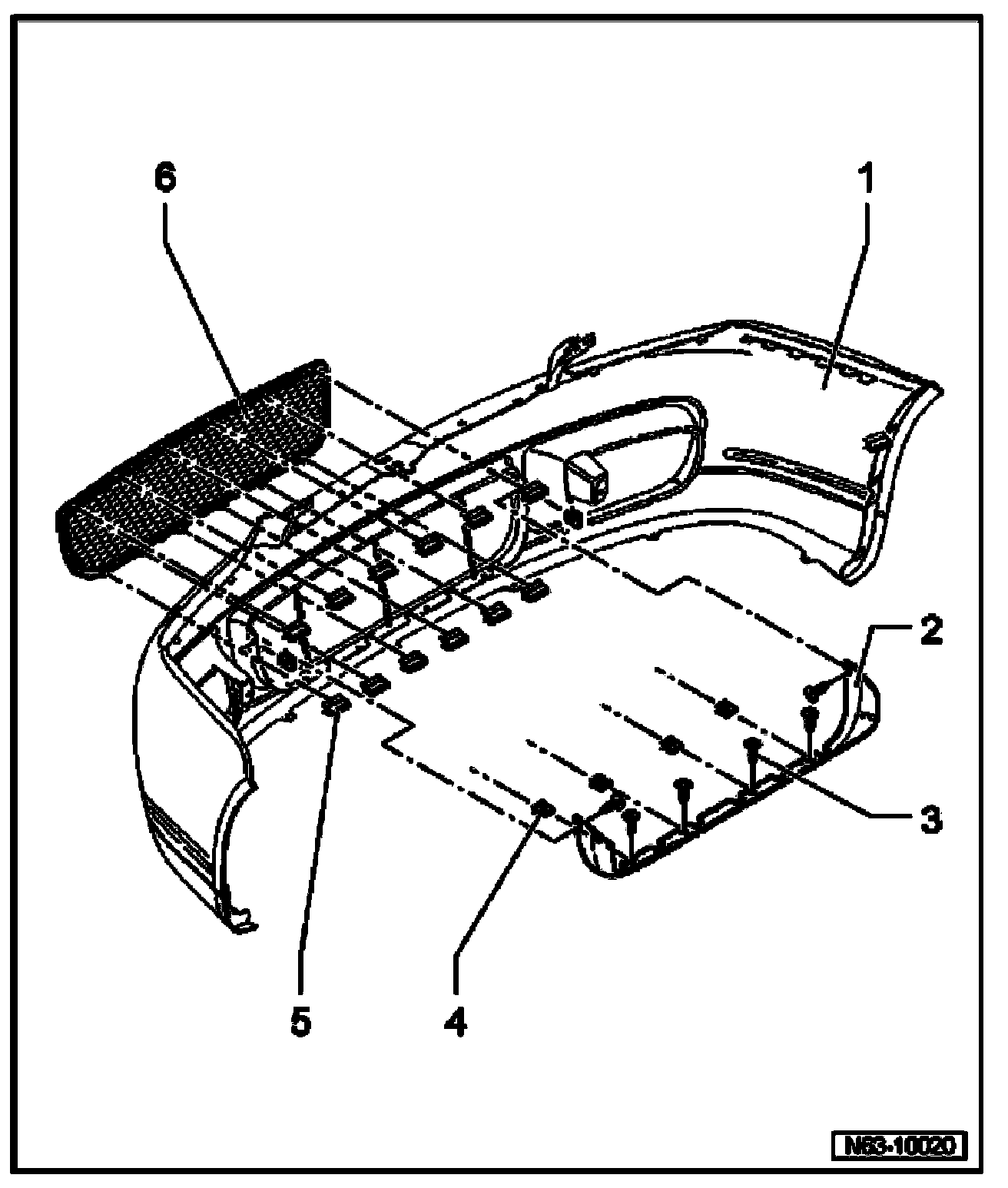

Center ventilation grid and air guide (Golf R32), assembly overview






1. Bumper cover
Material - PP/EPDM
Removing, refer to Bumper cover, removing and installing Service and Repair

2. Air duct

3. Bolt
Qty. 6
1.5 Nm

4. Speed nut
Qty. 6

5. Clip
Qty. 12

6. Center ventilation grid

Removing
- Remove bumper cover. Service and Repair
- Remove clamps.
- Remove center ventilation grid.

Installing
- Installation is performed in the reverse order of removal. Note the following: Damaged clamps must be replaced.
