Front Bumper Cover / Fascia: Locations

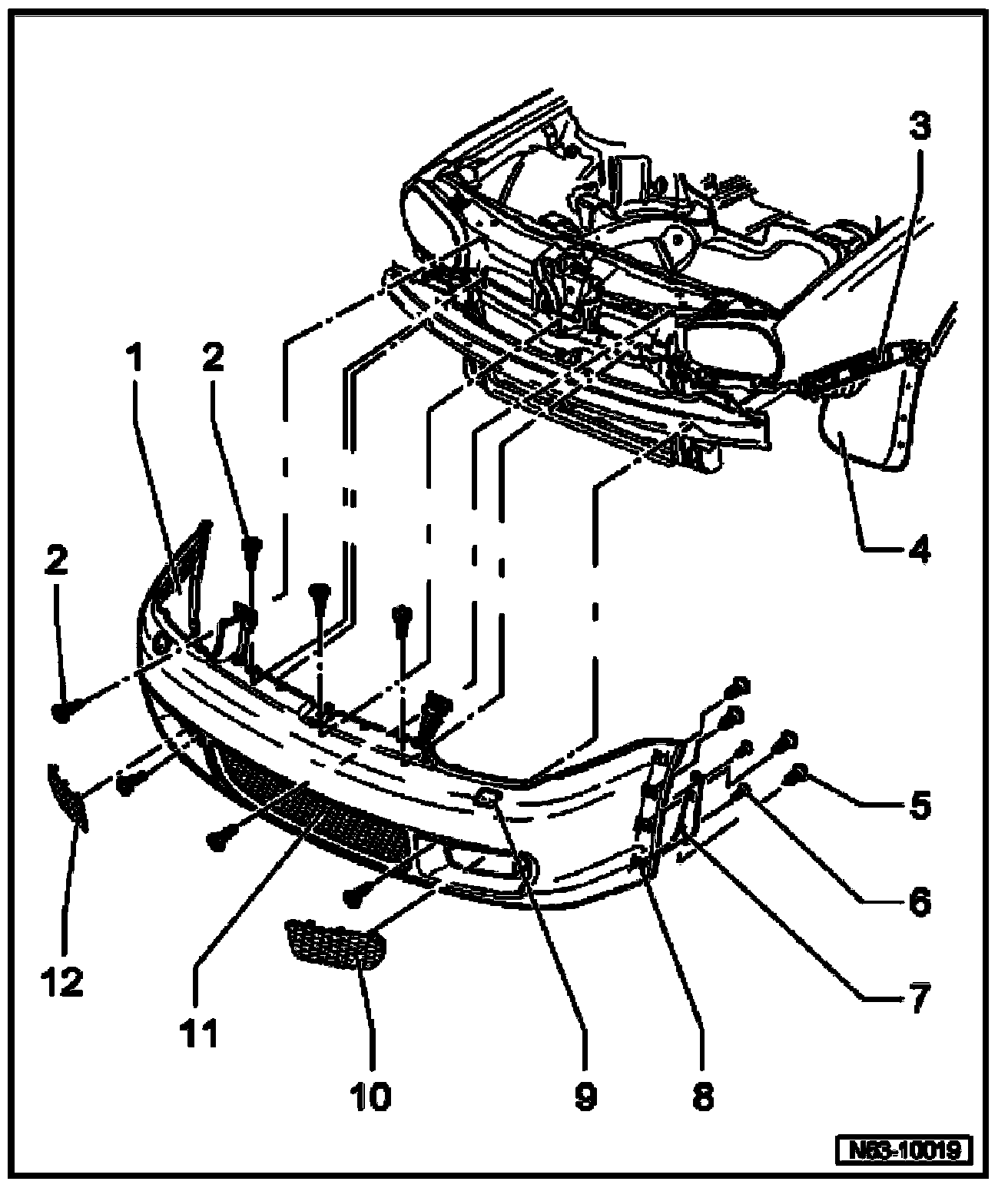

Bumper cover (Golf R32), assembly overview

Note: Slight changes may have to be made to removal and installation procedures, depending upon equipment installed in vehicle.






1. Bumper cover
Material - PP/EPDM
Removing, refer to Bumper cover (Golf R32), removing and installing Service and Repair

2. Bolt
Qty. 7
6.6 Nm

3. Guide piece
To remove and install, pull out/slide in bumper cover parallel out of guide pieces (left and right sides).

4. Wheelhousing liner

5. Bolt
Qty. 8
1.5 Nm

6. Bolt
Qty. 2
1.5 Nm

7. Adapter part
With 2 speed nuts
Remove wheelhousing liner before removing adapter part
Removing and installing, refer to Adapter part (Golf R32), removing and installing

8. Speed nut
Qty. 8

9. Cover for headlight cleaning system
Cover is clipped in at nozzle holder of headlight cleaning system

10. Left ventilation grid
Clipped in on bumper cover

11. Center ventilation grid
Secured to bumper cover with clamps
Assembly overview, refer to Center ventilation grid and air guide (Golf R32), assembly overview
Removal of center ventilation grid only possible with bumper cover removed

12. Right ventilation grid
Clipped in on bumper cover
