Transmission Mount: Adjustments

Aligning engine and transmission mountings





Special tools and equipment

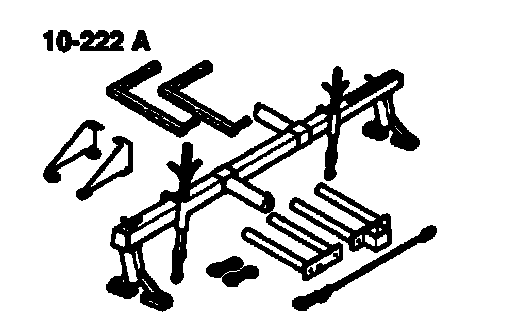

- Support assembly 10-222 A with legs 10-222 A/1

WARNING: Before loosening bolts secure assembly using support device 10222A.

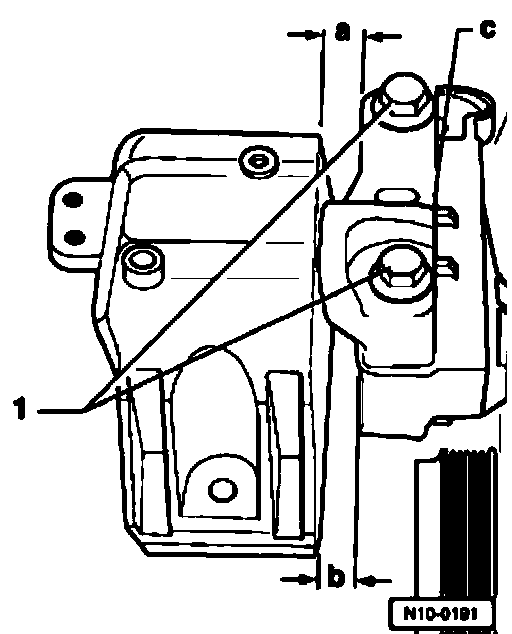

Engine mounting
- a-= 14.0 mm
- b- = at least 10.0 mm
Both bolt heads -1- must be in flush with edge -c

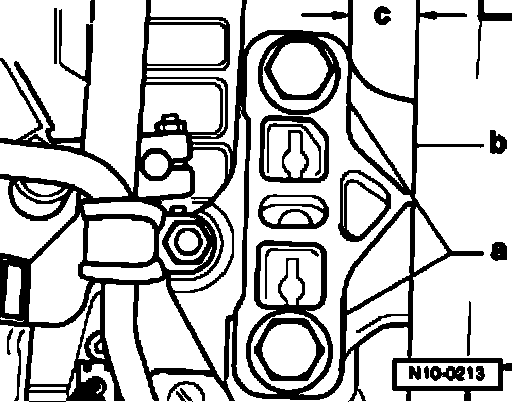

Transmission mounting
Edges -a- and -b- must be parallel with one another
- c-= 18 to 20 mm

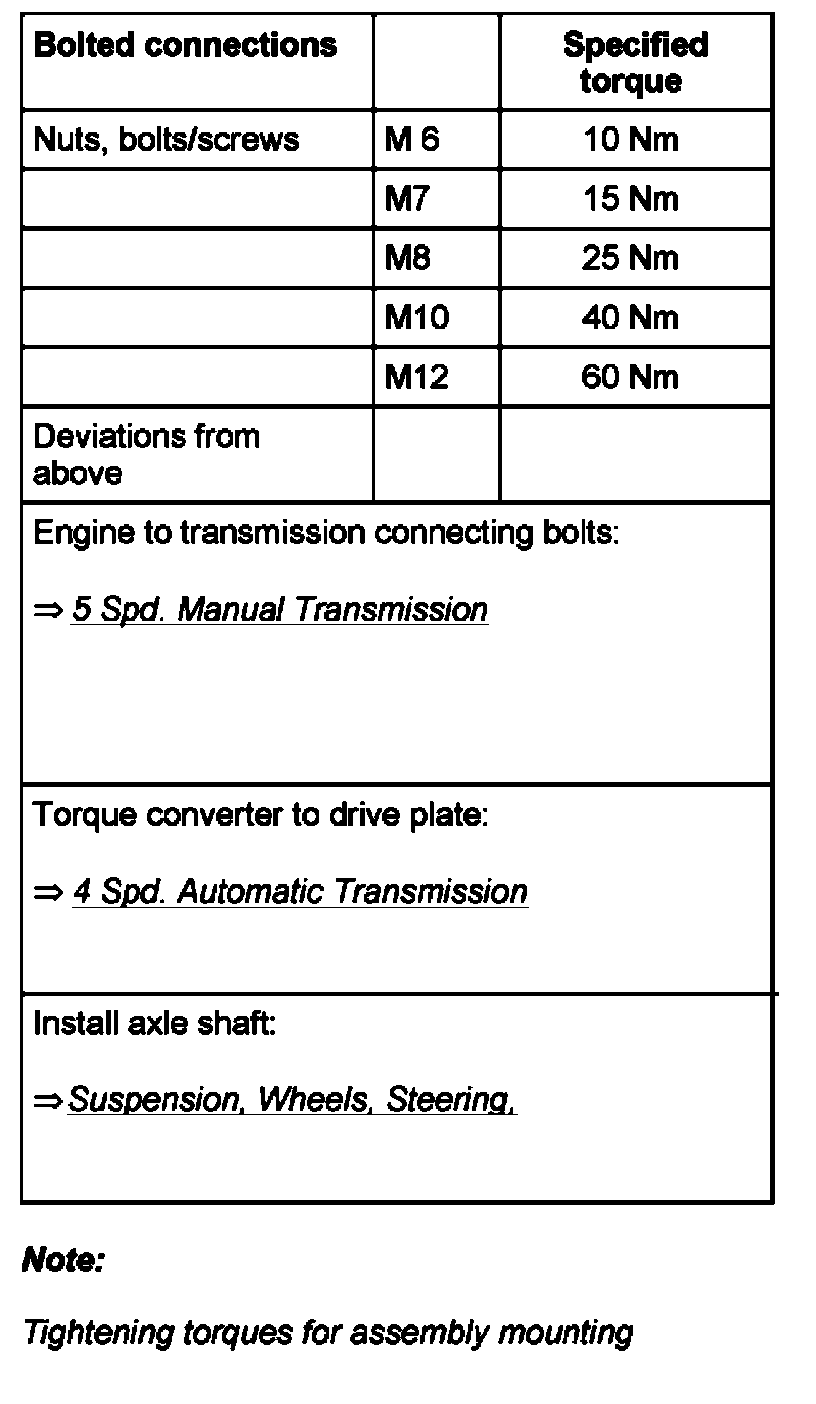

Note: Tightening torques for assembly mounting.





Tightening Torques
