Fuel Rail With Injectors, Disassembling and Assembling

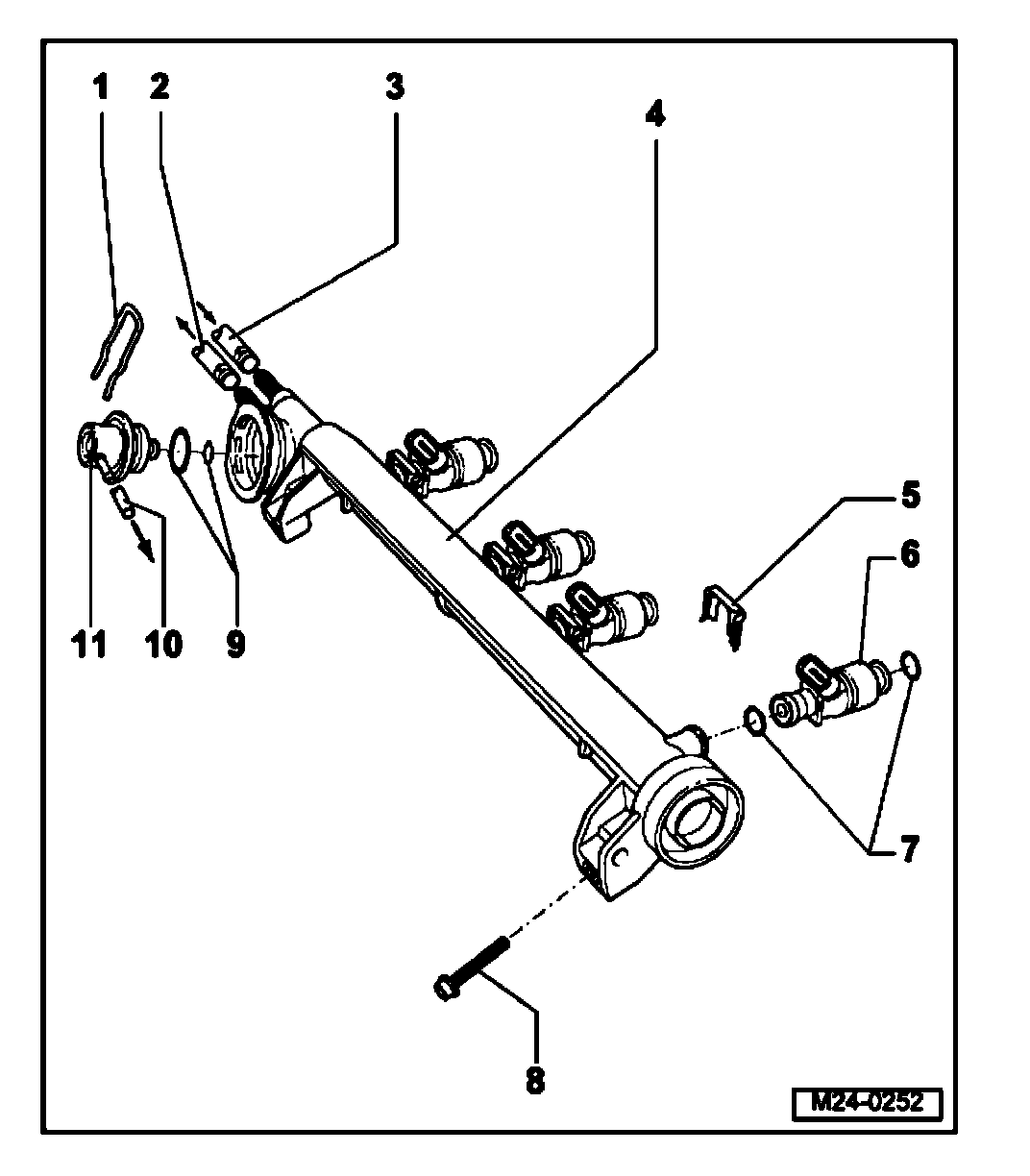

Fuel rail with injectors, disassembling and assembling





Engines: AEG, AVH, AZG, BEJ, BER, BHP
1. Securing clip
^ Check for secure seating
2. Return hose
^ Blue or with blue marking
^ Secure with spring-type clips
^ Check for secure seating
^ To fuel supply unit in fuel tank
3. Supply line
^ Black with white marks
^ Secure with spring-type clips
^ Check for secure seating
^ From fuel filter
4. Fuel rail
5. Securing clip
^ Ensure correct seating at injector and fuel rail
6. Injectors -N30-, -N31-, -N32-, -N33
7. O-ring
^ Before installing, moisten with clean engine oil
8. 8 Nm
9. O-ring
10. Vacuum hose
11. Fuel pressure regulator
