6-Speed Manual Transmission 02M

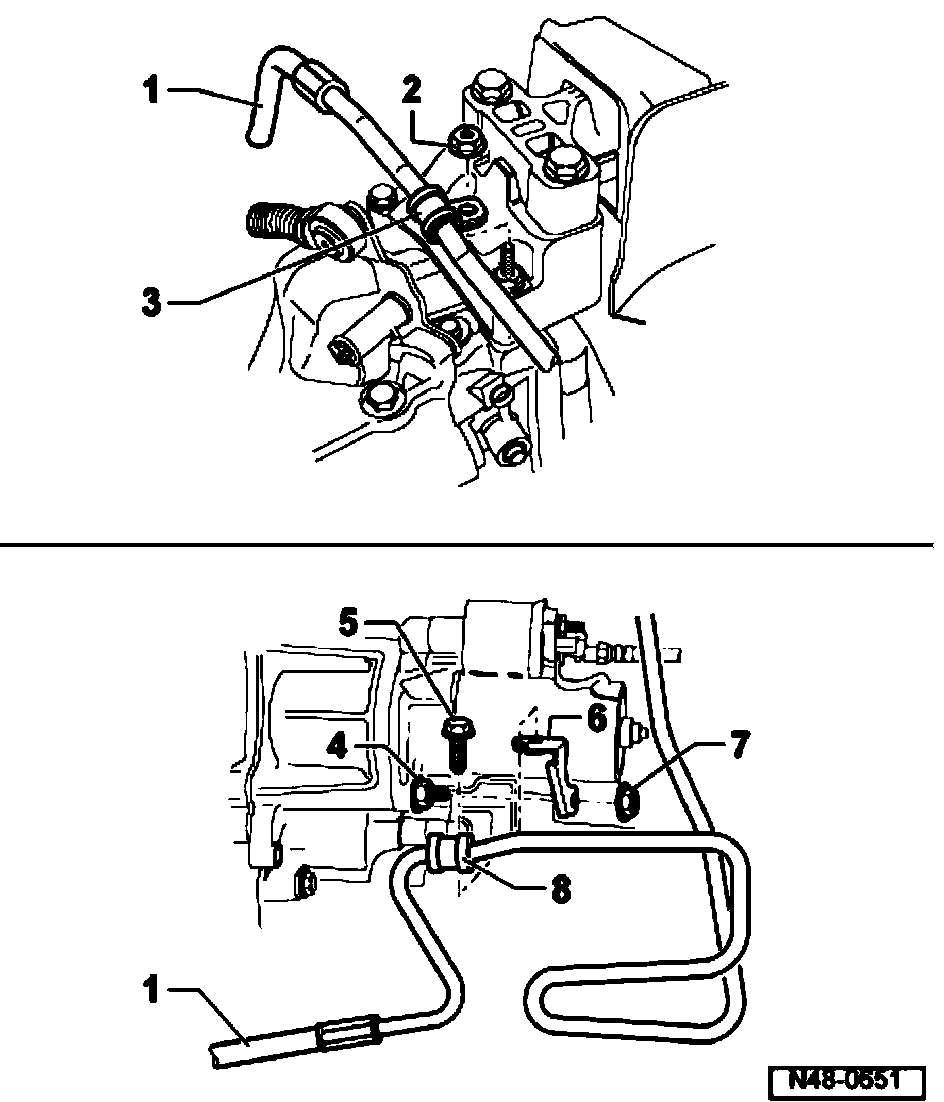

Securing pressure line on 6-speed manual transmission 02M





1. Pressure line
2. Hex nut, 22 Nm (16 ft. lbs.)
3. Clamp
4. Securing bolt on starter
5. Hex bolt, 22 Nm (16 ft. lbs.)
6. Bracket
7. Hex nut, 22 Nm (16 ft. lbs.)
8. Clamp
