5-Speed Manual Transmission 02J

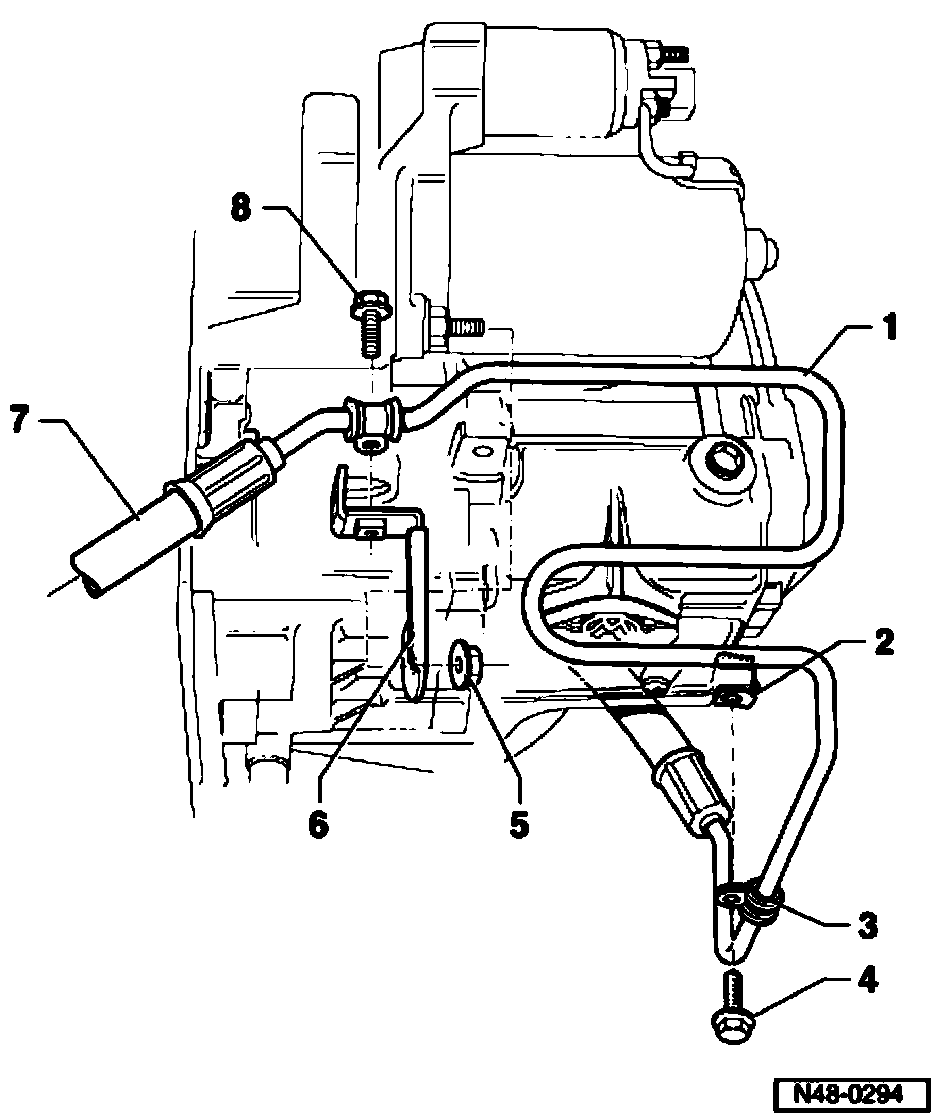

Securing pressure line on 5-speed manual transmission 02J





1. Pressure line
2. Speed nut
3. Clamp
4. Hex bolt, 22 Nm (16 ft. lbs.)
5. Hex nut, 22 Nm (16 ft. lbs.)
6. Bracket
7. Pressure hose
8. Hex bolt, 22 Nm (16 ft. lbs.)
