Without A/C

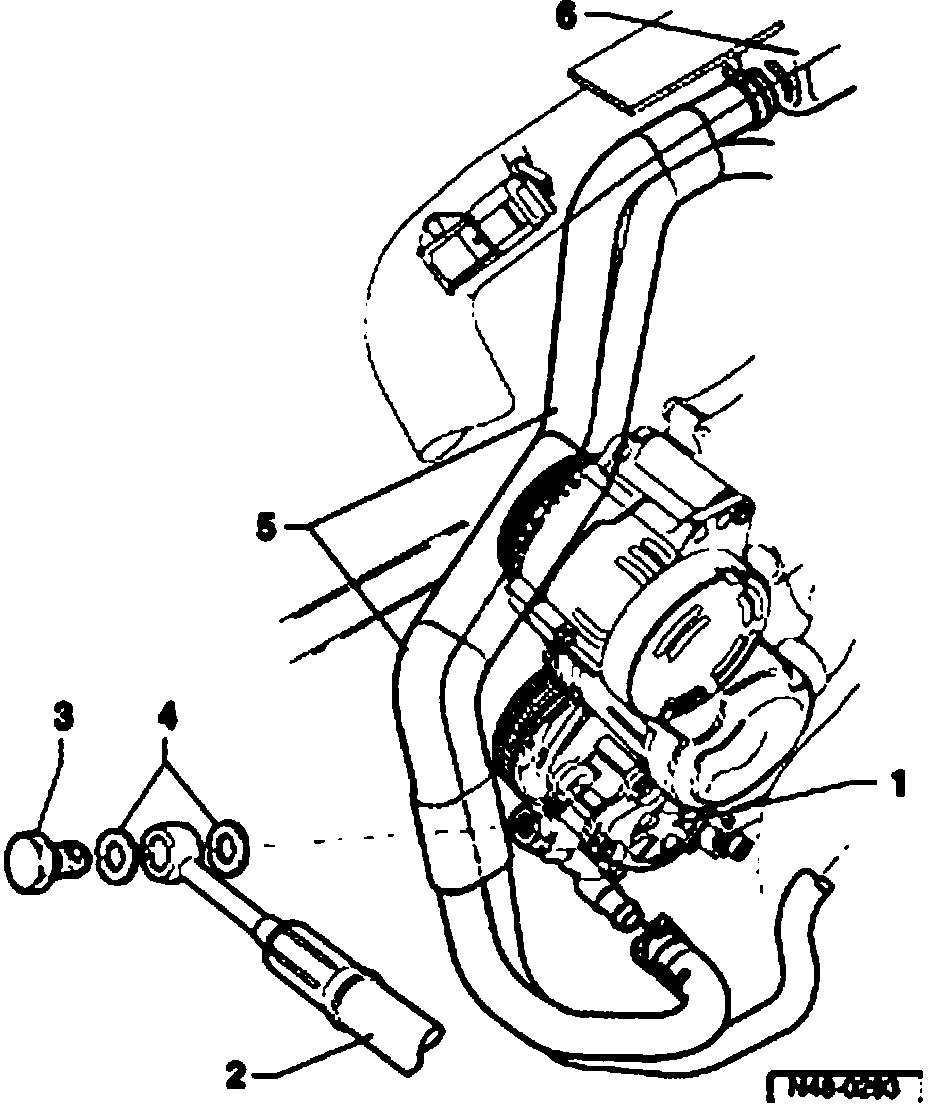

Securing pressure line and intake hose on vehicles with TDI engine and no A/C
1. Vane pump
2. Pressure line
3. Banjo bolt, 38 Nm (28 ft. lbs.)
4. O-ring
^ Always replace
5. Intake hose with coolant hose
6. Reservoir
Securing pressure line and intake hose on vehicles with TDI engine and no A/C
1. Vane pump
2. Pressure line
3. Banjo bolt, 38 Nm (28 ft. lbs.)
4. O-ring
^ Always replace
5. Intake hose with coolant hose
6. Reservoir
