With A/C

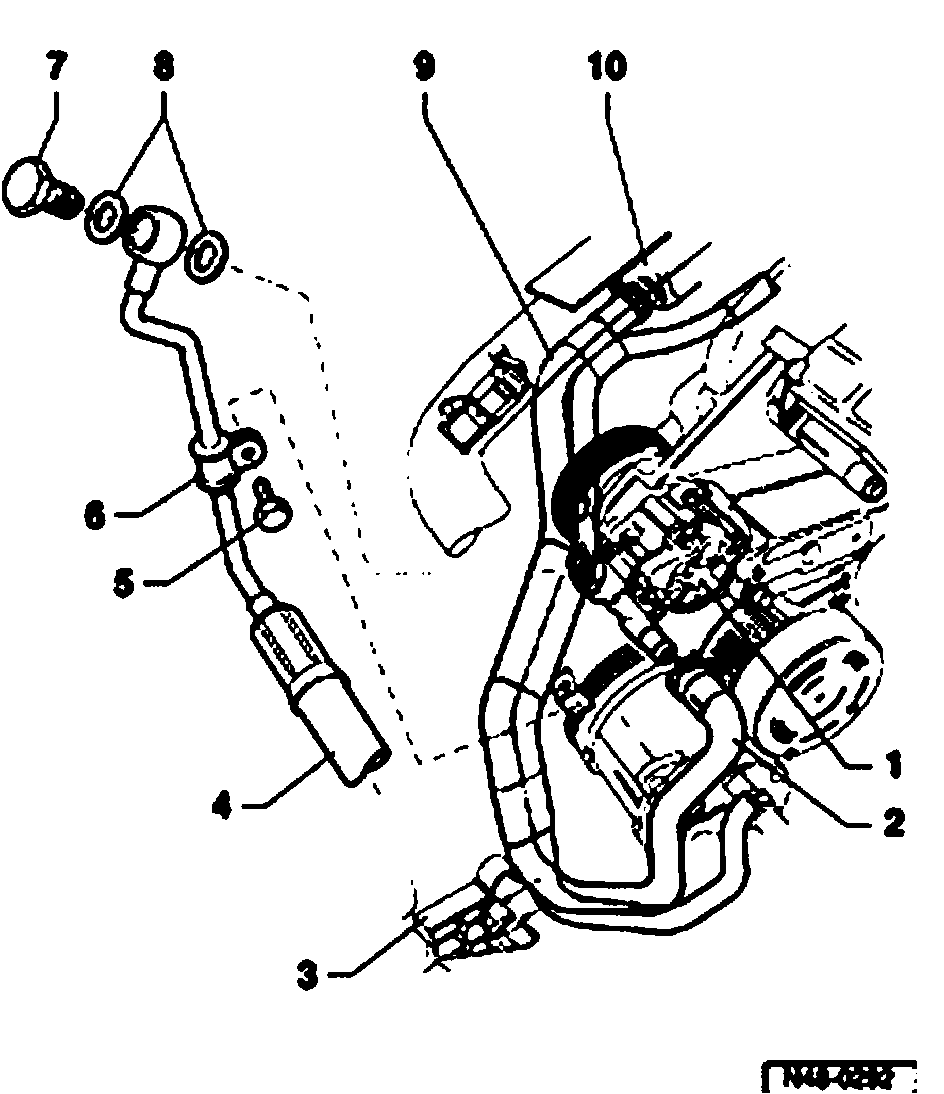

Securing pressure line and intake hose on vehicles with TDI engine and A/C





1. Power steering pump
2. Intake hose
3. Bracket
4. Pressure line
5. Hex head bolt, 22 Nm (16 ft. lbs.)
6. Clamp
7. Banjo bolt, 38 Nm (28 ft. lbs.)
8. O-ring
^ Always replace
9. Intake hose
10. Reservoir
