Seals and Gaskets: Service and Repair

Automatic Transmission Model 01M

Torque converter oil seal, removing and installing
Special tools and equipment

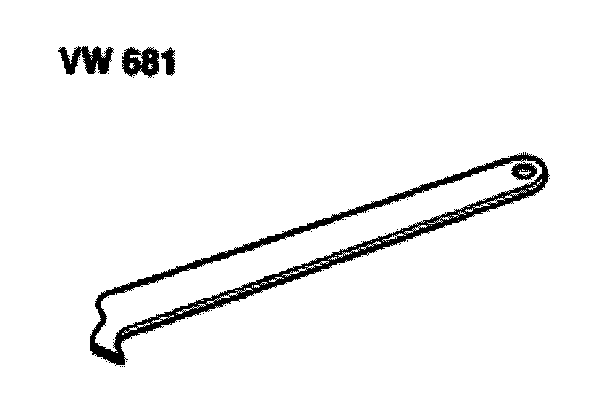

- VW 681 Extractor lever

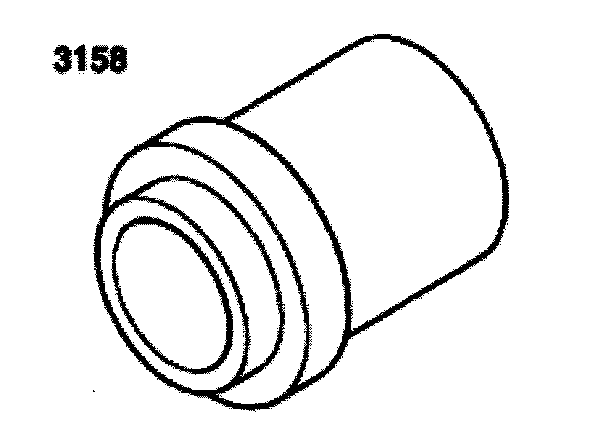

- 3158 Drift sleeve

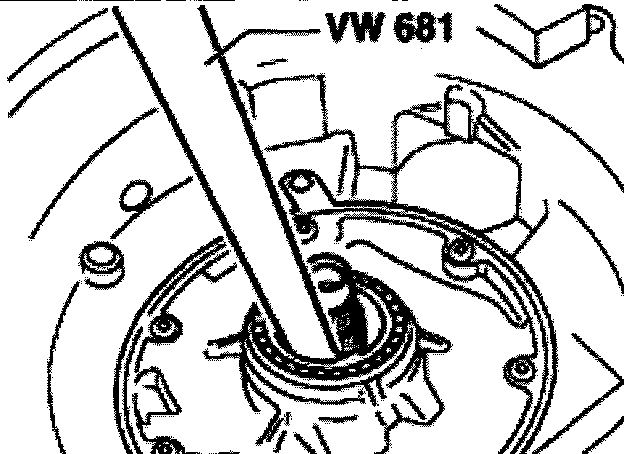

Removing torque converter oil seal

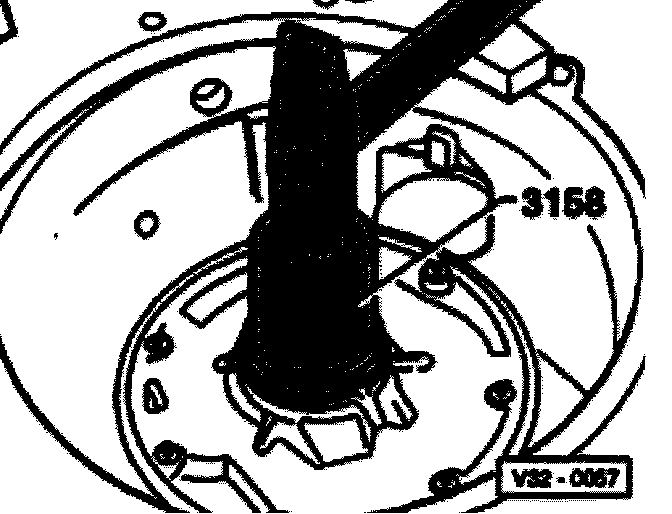

Driving in torque converter oil seal until flush
