Tie Rod: Testing and Inspection

Tie rods, modified
The tie rod rods have been shortened.





Vehicle identification number, introduction; Tie rod ball joints, modified

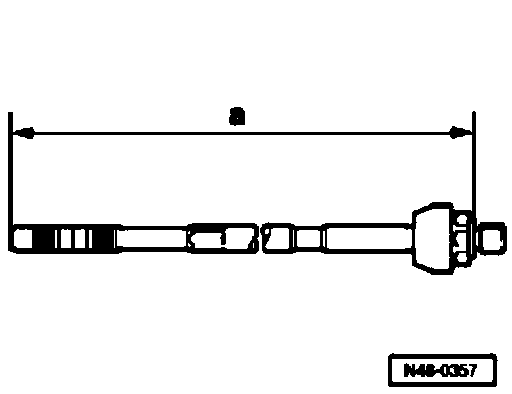

Tie rod dimensions
^ Previous tie rod; dimension - a - 343.1 mm (13.508 inch)
^ New tie rod; dimension - a - 318.9 mm (12.555 inch)

Note: A mixed installation of previous and new tie rods are not permitted!

Security and boots on tie rod ends, checking play
- With vehicle raised (wheels hanging free), check play by moving tie rods and wheels. Play: Zero play
- Check mountings.
- Check boots are not damaged and are seated correctly.





Center position on rack, determining

Rack should be positioned in center position before installing power steering gear.

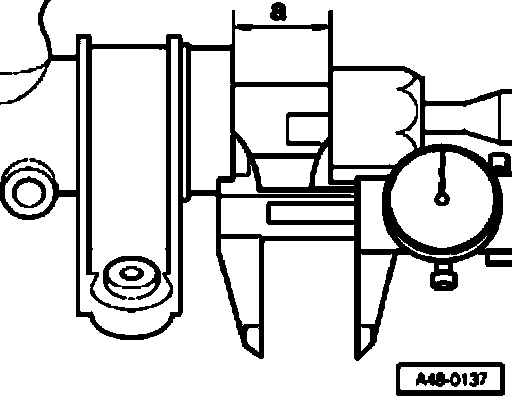

- Slide rack until dimension - a - is achieved.
Measure - a - = 30.5 mm (1.201 inch
