Steering Gear: Adjustments

Steering gear, adjusting

Note: Two technicians are required when adjusting. Adjust with engine switched off.

- Raise vehicle on hoist.
- Wheels in straight-ahead position.





- By turning the steering wheel back and forth (about 30 - from center axis) a knocking noise will be heard if there Is excessive play.
- The second technician must carefully screw adjustment screw into cover until knocking noise can no longer be heard inside the vehicle.





- Perform road test to ensure steering returns to center without sticking.

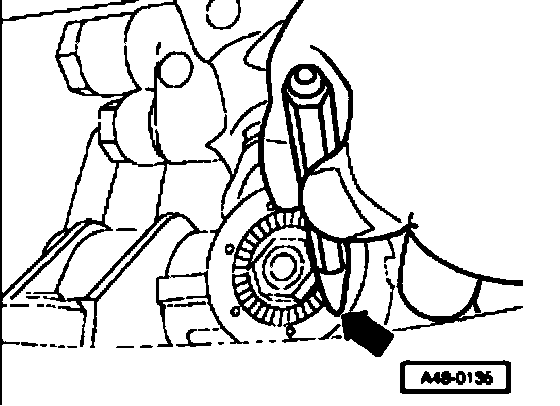

- Secure lock nut with a punch mark - arrow -
