Power Steering Pump: Testing and Inspection

Power steering pump delivery pressure, checking

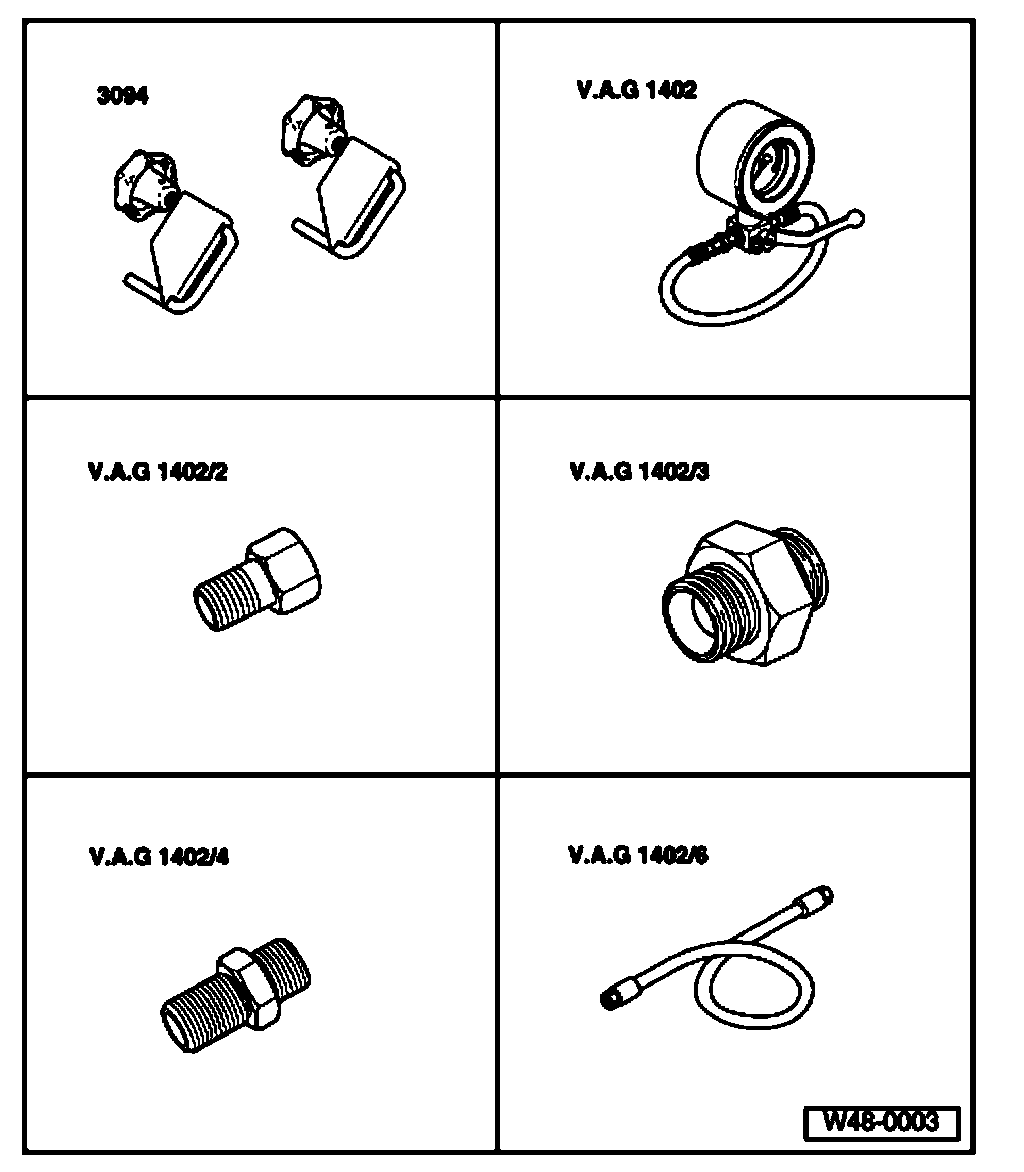

Special tools, testers and auxiliary items required
^ Hose clamps 3094
^ Power steering test unit V.A.G. 1402
^ Adapter V.A.G. 1402/2
^ Adapter V.A.G. 1402/3
^ Adapter V.A.G. 1402/4
^ Hose from adapter set V.A.G. 1402/6

Special tools, testers and auxiliary items required





^ Spring type clip pliers VAS 5024 A

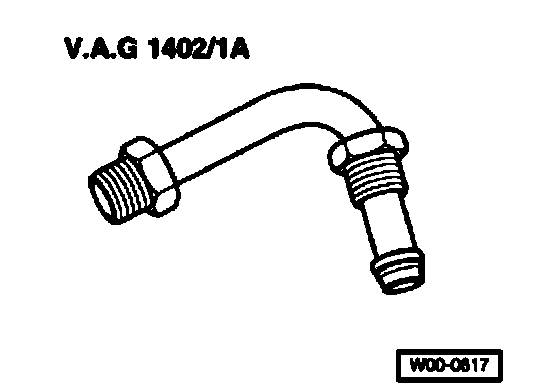

^ Adapter V.A.G. 1402/1 A

Vehicles with low mounted power steering pump

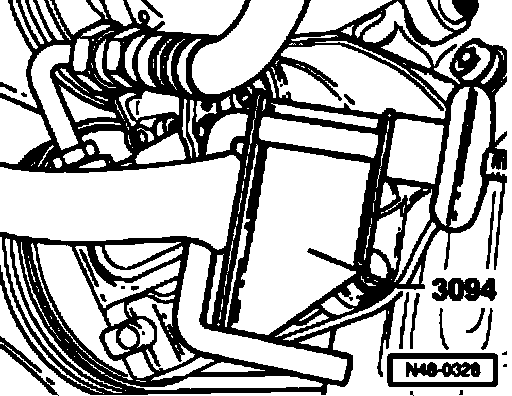

- Clamp return hose with hose clamp 3093 .





- Remove noise insulation tray.

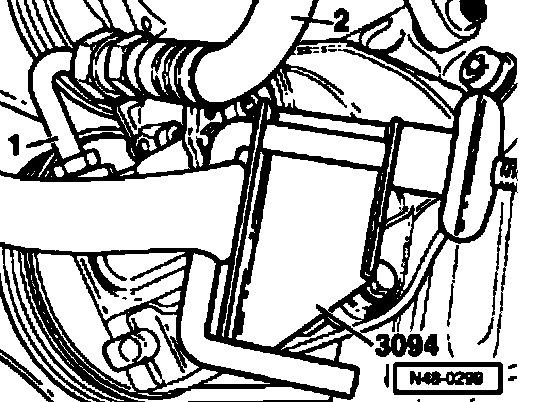

- Clamp intake hose with hose clamp 3094 .
- Place oil pan under vehicle.
- Disconnect pump pressure line.





- Disconnect connector from pressure switch if necessary.
- Install adapter- 1 -.
Use a sealing ring.
1 - V.A.G. 1402/1





2 - Hose from adapter set V.A.G. 1402/6

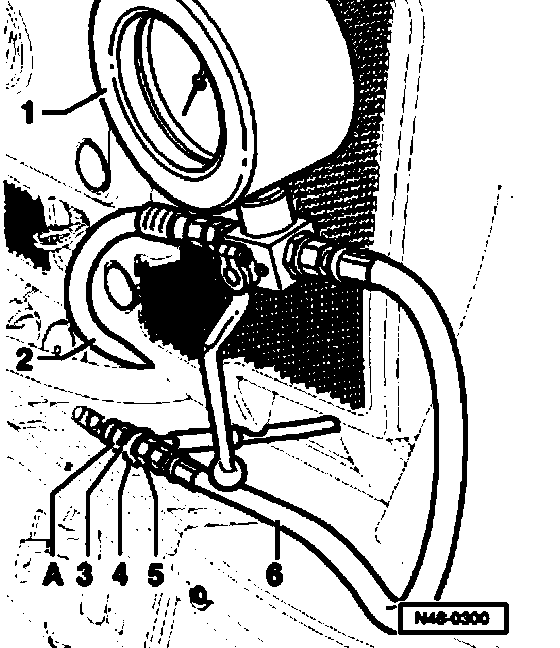

- Connect pressure gauge V.A.G. 1402
A - Pressure switch,1.8 ltr. gasoline engines only
1 - Pressure gauge V.A.G. 1402
2 - Hose from adapter set V.A.G. 1402/6
3 - Banjo bolt
4 - Pressure hose banjo union
5 - V.A.G. 1402/2
6 - Hose from pressure gauge V.A.G. 1402
- Remove hose clamp 3094 from intake and return hoses.
- Re-connect intake and return hoses.
- Start engine and if necessary add fluid to reservoir.
- Turn steering wheel from lock to lock about 10 times.
- Check delivery pressure.

Test requirements:
^ V-belt N-belt tension OK
^ System has no leaks
^ Hoses/lines not kinked or restricted
- With engine running at idling speed. Close cut-off valve (not longer than 5 seconds) and read off pressure.

Specifications
Gasoline engines: 85...95 bar (1233 - 1378 psi)
Diesel engines: 96..0.105 bar (1392 - 1523 psi)

Note:
^ If the reading is higher or lower than specified replace pump:
^ If the fluid level in the reservoir is low, the steering system must be inspected for leaks.
^ For leaks at the pinion first check the lines/line connections for leaks and if necessary tighten and wipe dry.
^ If the pinion seal or the rack seals in steering transmission housing are leaking then replace steering transmission.
^ To check the rack seals loosen the hose clip on the boot and push boot to one side.





Vehicles with high mounted power steering pump

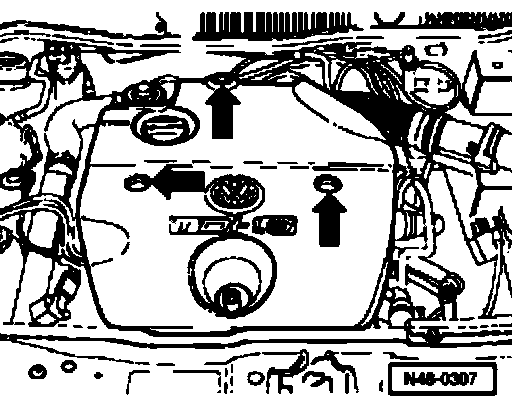

- Remove engine cover.

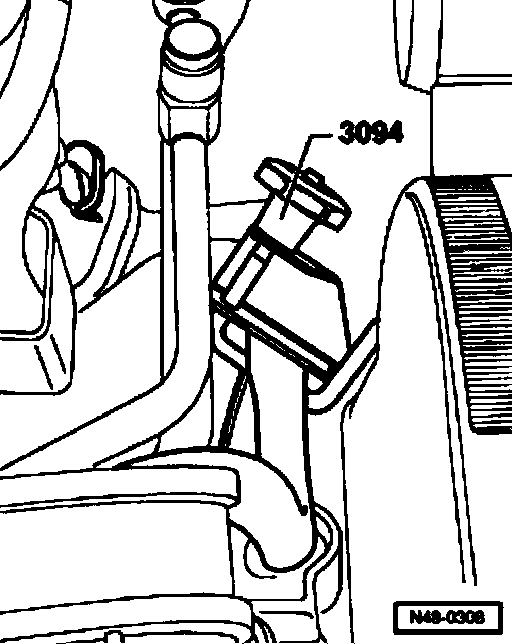

- Clamp return hose with hose clamp 3094 .

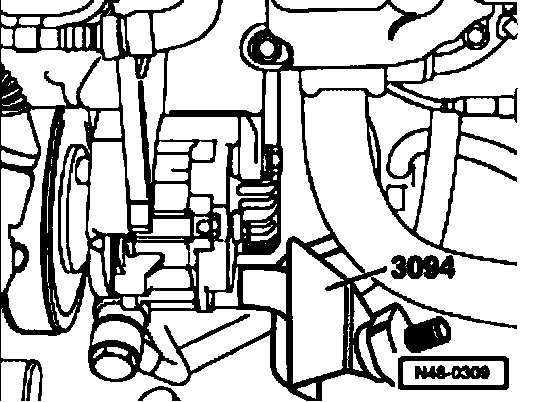

- Clamp intake hose with hose clamp 3094 .
- Place oil pan under vehicle.
- Disconnect pressure line at the pump.

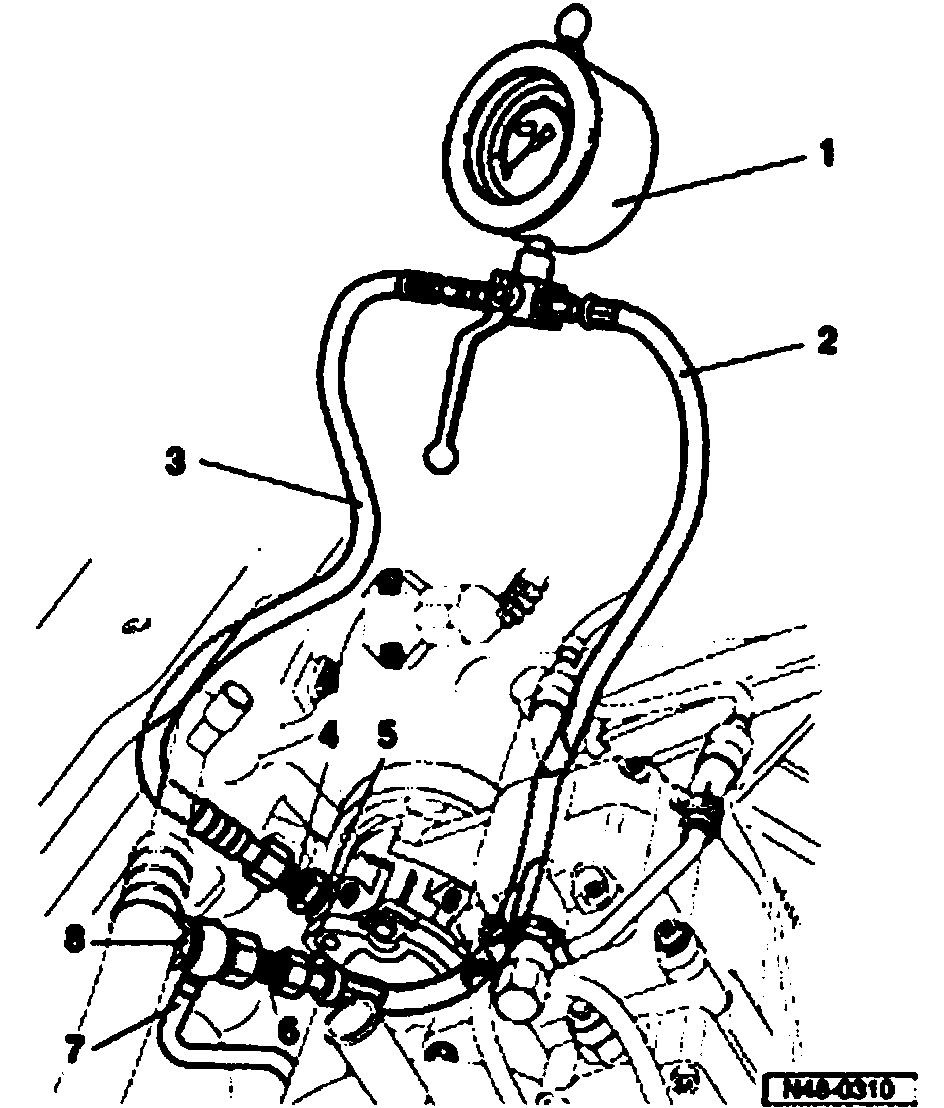

Connect pressure gauge V.A.G. 1402
1. Pressure gauge V.A.G. 1402
2. Hose from pressure gauge V.A.G. 1402
3. Hose from adapter set V.A.G. 1402/6
4. Adapter V.A.G. 1402/4
5. O-rings
^ Qty.2
6. Adapter V.A.G. 1402/2
7. Pressure line with banjo union
8. Banjo bolt
- Remove hose clamp 3094 from intake and return hoses.
- Start engine and if necessary add fluid to reservoir.
- Turn steering wheel from lock to lock about 10 times.
- Check delivery pressure.

Test requirements:
^ V-belt N-belt tension OK
^ System has no leaks
^ Hoses/lines not kinked or restricted
- With engine running at idling speed. Close cut-off valve (not longer than 5 seconds) and read off pressure.

Specifications
Gasoline engines: 85...95 bar (1233 - 1378 psi) (1233 - 1378 psi)
Diesel engines: 96..0.105 bar (1392 - 1523 psi)

Note:
^ If the reading is higher or lower than specified replace pump:
^ If reservoir fluid level is low then check steering system for leaks.
^ For leaks at the pinion first check the lines/line connections for leaks and if necessary tighten and wipe dry.
^ If the pinion seal or the rack seals in steering transmission housing are leaking then replace steering transmission.
^ To check the rack seals loosen the hose clip on the boot and push boot to one side.
