Low-Mounted Power Steering Pump, Assembly Overview

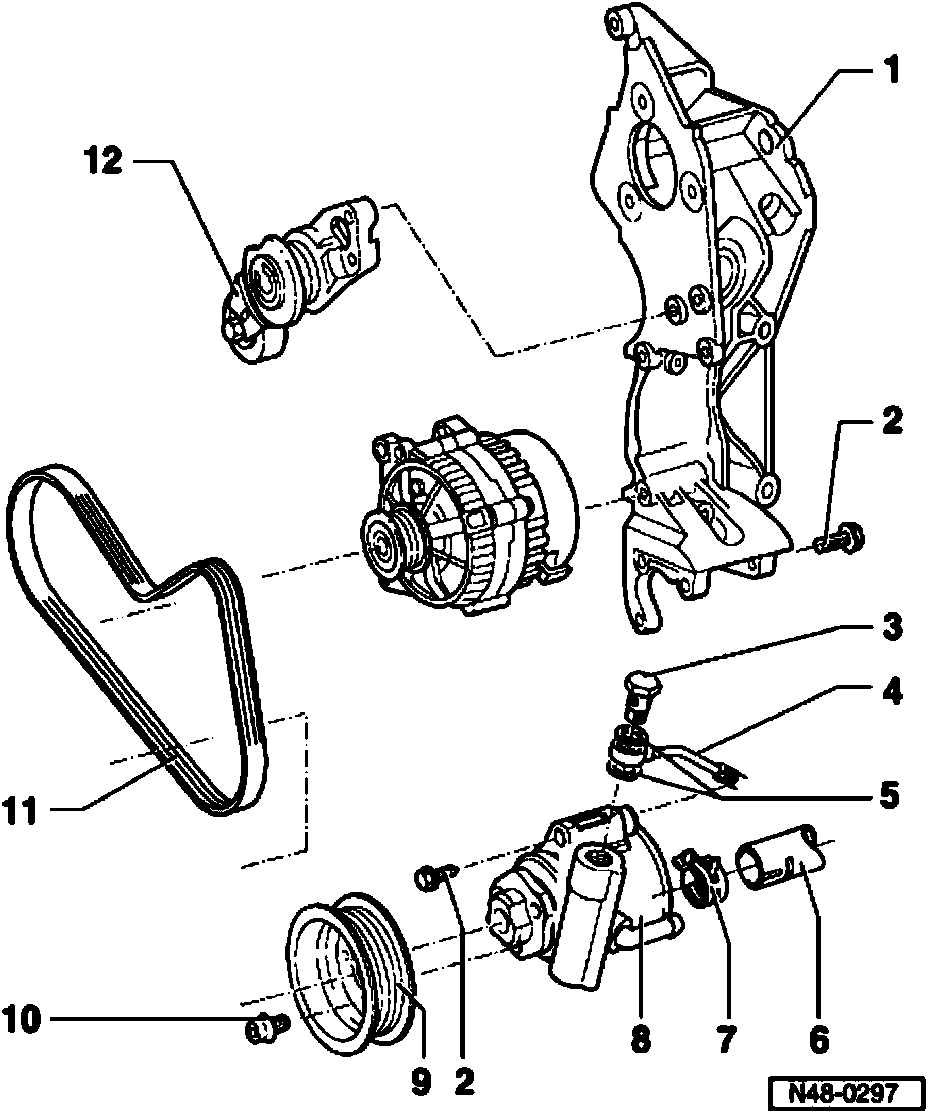

Low-mounted power steering pump, assembly overview





Vehicles with low mounted power steering pump
1. Bracket
2. Hex bolt, 25 Nm (18 ft. lbs.)
3. Banjo bolt, 38 Nm (28 ft. lbs.)
4. Pressure line
5. O-ring
^ Always replace
6. Intake hose
7. Clamp
8. Power steering pump
9. Belt drive pulley
10. Hex socket head bolt
^ 25 Nm (18 ft. lbs.)
11. Ribbed V-belt
^ Mark direction of travel before removing
^ Application; Refer to Part Supplier
12. Ribbed belt tensioner
