High-Mounted Power Steering Pump, Assembly Overview

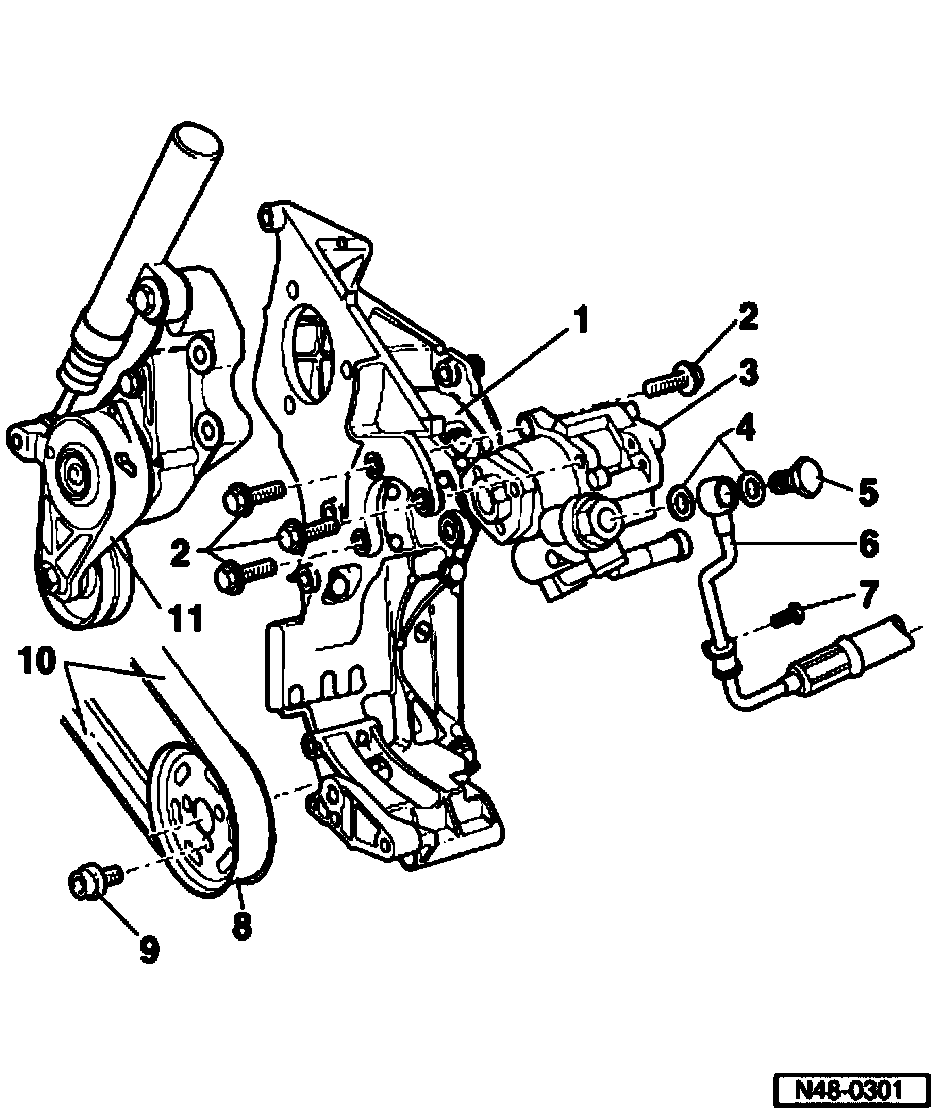

High-mounted power steering pump, assembly overview





Vehicles with high mounted power steering pump
1. Bracket
2. Hex bolt, 25 Nm (18 ft. lbs.)
3. Power steering pump
4. O-ring
^ Always replace
5. Banjo bolt, 38 Nm (28 ft. lbs.)
6. Pressure line
7. Hex bolt, 22 Nm (16.2 ft. lbs.)
8. Belt pulley
9. Hex socket head bolt
^ 25 Nm (18 ft. lbs.)
10. Ribbed V-belt
11. Ribbed belt tensioner
