Parking Brake Lever: Service and Repair

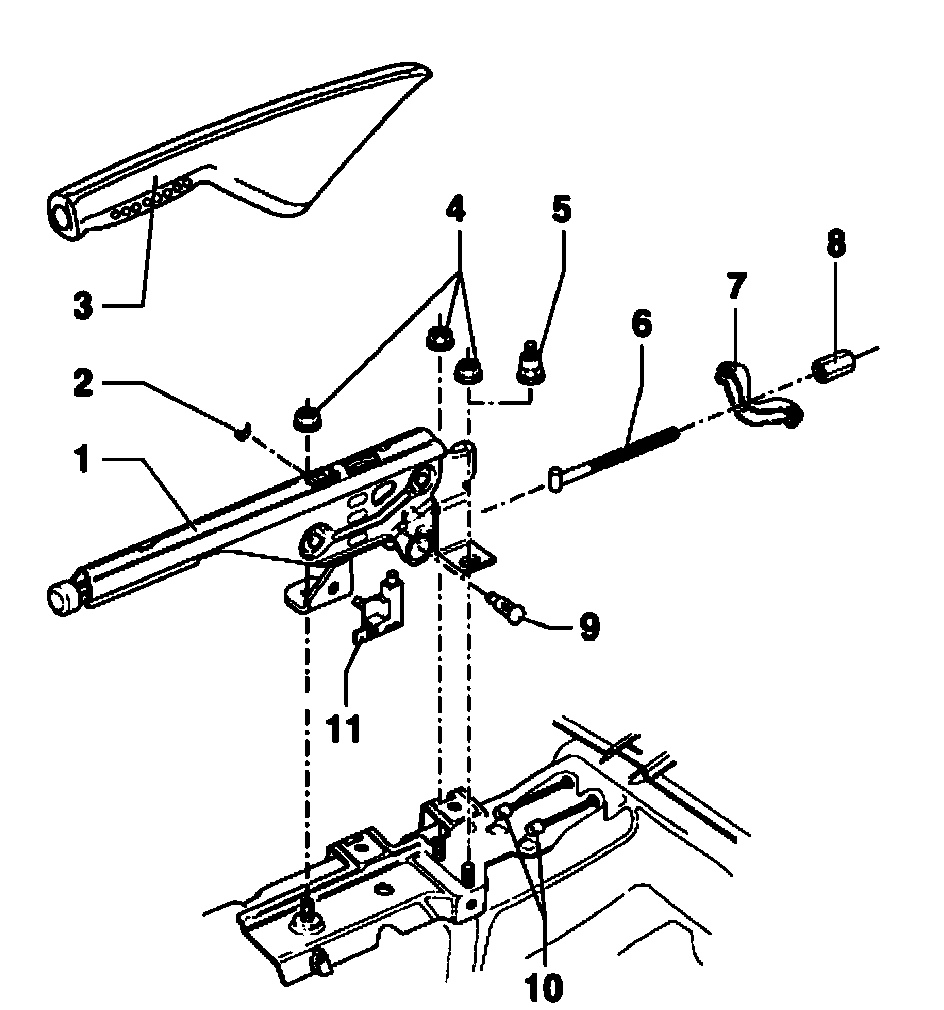

Parking brake lever, assembly overview





1. Parking brake lever
^ Before removing take out center console
2. Circlip
3. Parking brake lever trim
^ Pull off forward
^ Pry up release tab in rear lower area of trim with a screwdriver
4. Hex nut, 25 Nm (18 ft. lbs.)
5. Adapter
^ For vehicles with center armrest
6. Pull rod
7. Compensator
8. Adjusting nut
9. Fulcrum pin
10. Parking brake cables
11. Parking brake warning switch
