Brake Pedal, Removing and Installing

Brake pedal, removing and installing

Additional information
Refer to Powertrain Management

Removing
- Remove trim below instrument panel.

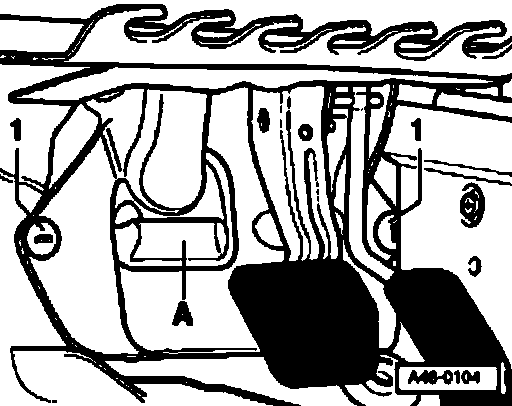

- Remove screws -1
- Remove cover -A-.

Vehicles with manual transmission





- Remove connecting plate between clutch and brake pedals on vehicles with a manual transmission.

Continued for all vehicles

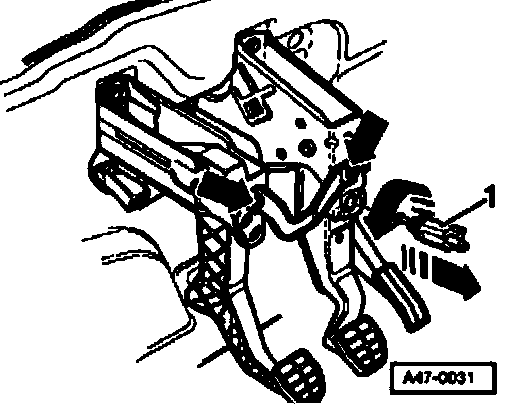

- Remove brake light switch -1
- Disconnect accelerator cable.
- Vehicles with accelerator pedal position sensor, release connector below instrument panel.
- Disconnect brake pedal from brake booster.
- Remove hex nuts item - 2 -.
- Take out pedal cluster.
- Remove brake pedal.

Installing
Install in reverse order.
- Adjust brake light switch.
