Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Volkswagen
>>
2003
>>
New Beetle (1C1) L4-2.0L (AVH)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>

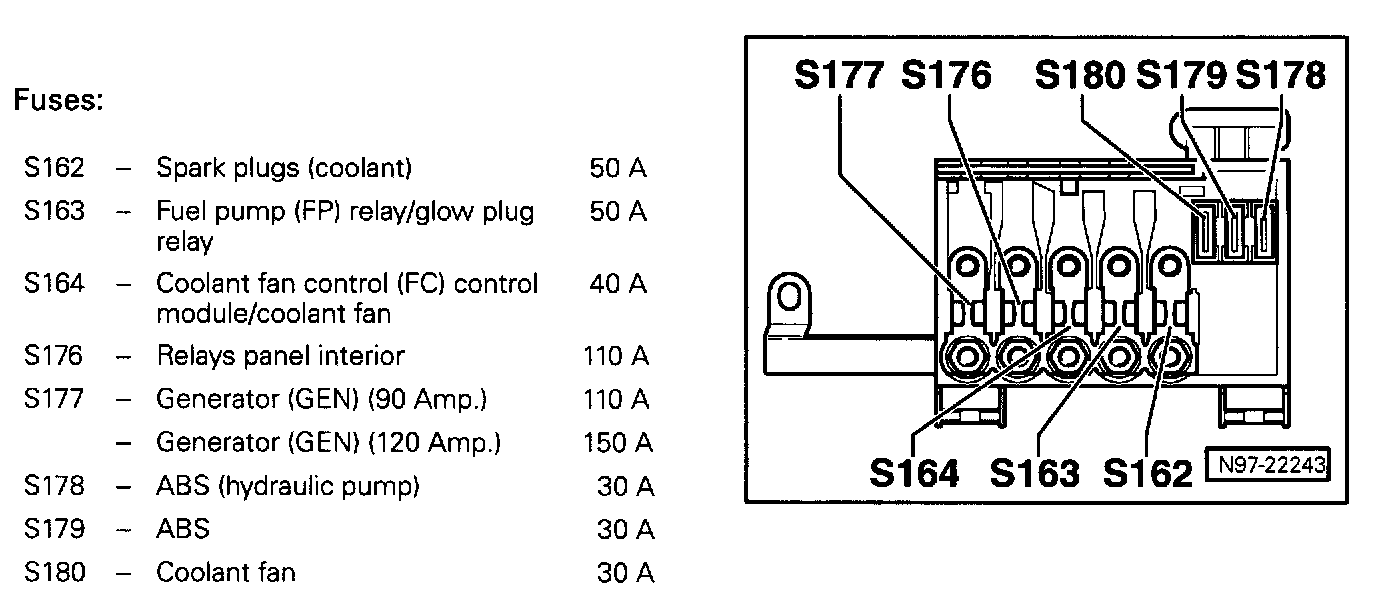

Fuse Arrangements in Fuse Bracket on Battery
Fuse Arrangements in Fuse Bracket on Battery
Fuse Arrangements In Fuse Bracket/Battery
