Rear Axle Camber

Adjusting

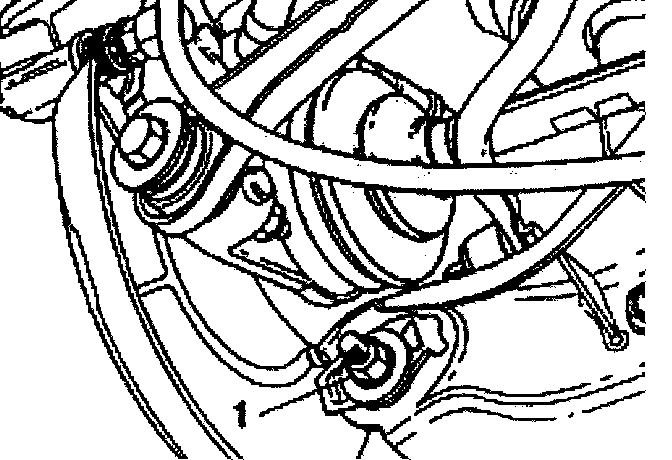

- Loosen hex nut -1-.

Note: The maximum adjustment range of the adjustment screw is 90° to the left or right of center.

- Turn eccentric bolt until the specification is obtained.
- Tighten hex nut -1- again.
- Now check camber values again.
Specifications for vehicle alignment.
