Load Compensator: Service and Repair

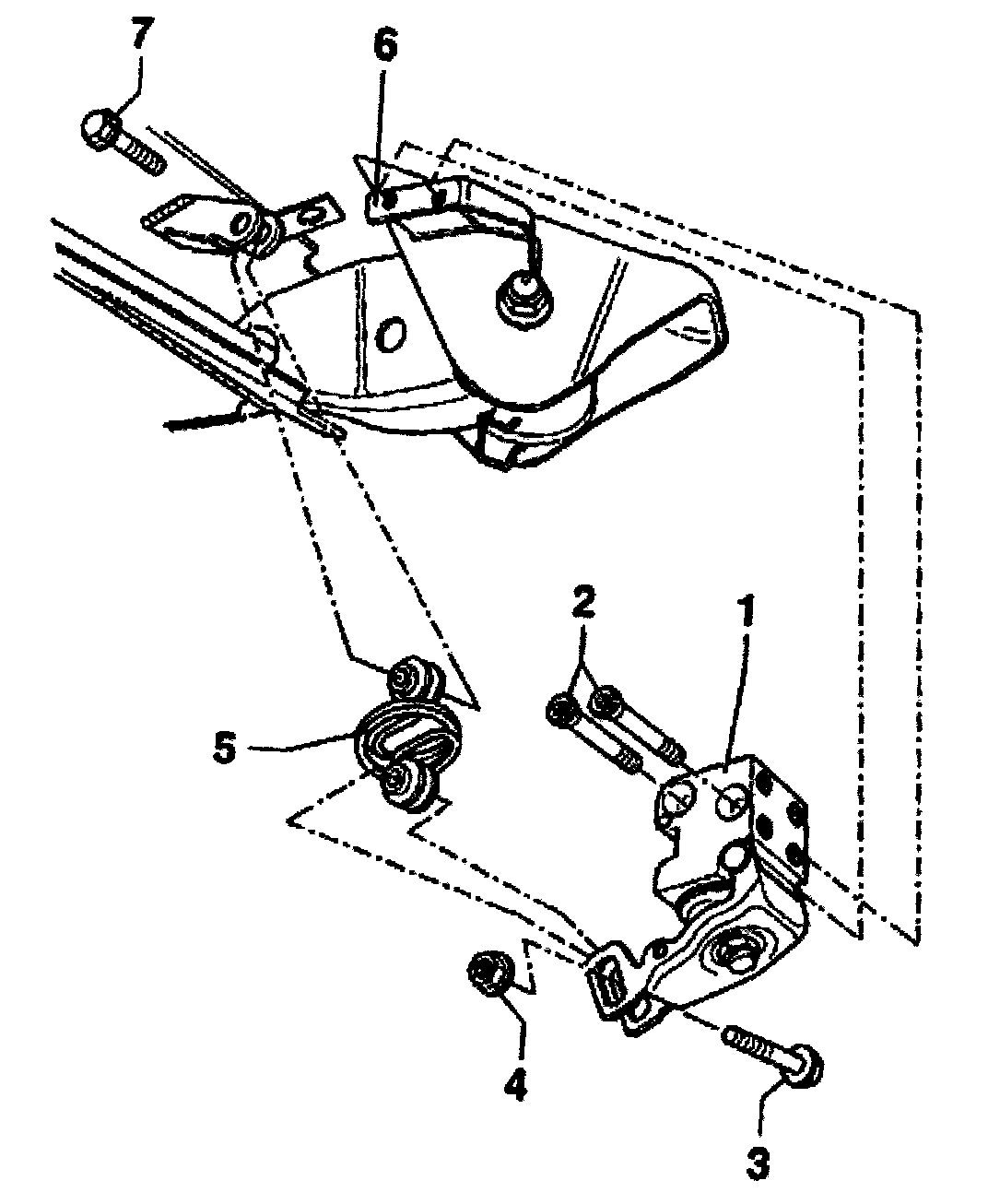

Brake pressure regulator, mounting
1 - Brake pressure regulator
2 - Sockethead bolt
^ Tighten to 21 Nm (15 ft. lbs.)
3 - Bolt
^ Tighten to 21 Nm (15 ft. lbs.)
4 - Nut
^ Tighten to 21 Nm (15 ft. lbs.)
5 - Spring
6 - Mounting bracket
7 - Bolt
^ Tighten to 16 Nm (12 ft. lbs.)
