Removing and Installing

Special tools and equipment

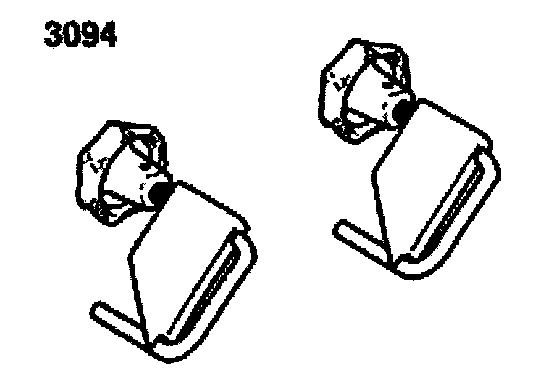

^ 3094 Hose clamps or equivalent

CAUTION! Before working on the brake system, read the CAUTIONS and WARNINGS.

Removing
^ Spread sufficient lint-free cloths in area of plenum chamber, and on engine and transmission to catch any escaping brake fluid.

WARNING!
^ Brake fluid is poisonous.
^ To draw off brake fluid from the reservoir, use a bleeder bottle which is used only for brake fluid. Never siphon brake fluid by mouth.

^ Using bleeder bottle, draw off as much brake fluid as possible from brake fluid reservoir.
^ Clamp clutch master cylinder supply hose with clamp 3094 or equivalent.
^ Remove clutch master cylinder supply hose from reservoir.
^ Disconnect brake fluid level sensor wiring connector.
^ Disconnect brake lines on brake master cylinder and seal with plugs from repair kit, Part No. 1 HO 698 311 A.
^ Remove nuts securing brake master cylinder to brake booster.
^ Carefully remove brake master cylinder from brake booster.

Installing
^ Install master cylinder in reverse order of removal.

Notes:
^ When connecting brake master cylinder and brake booster be sure that the push rod is correctly located in the master cylinder.
^ After installing, bleed brakes.
