Removal and Installation

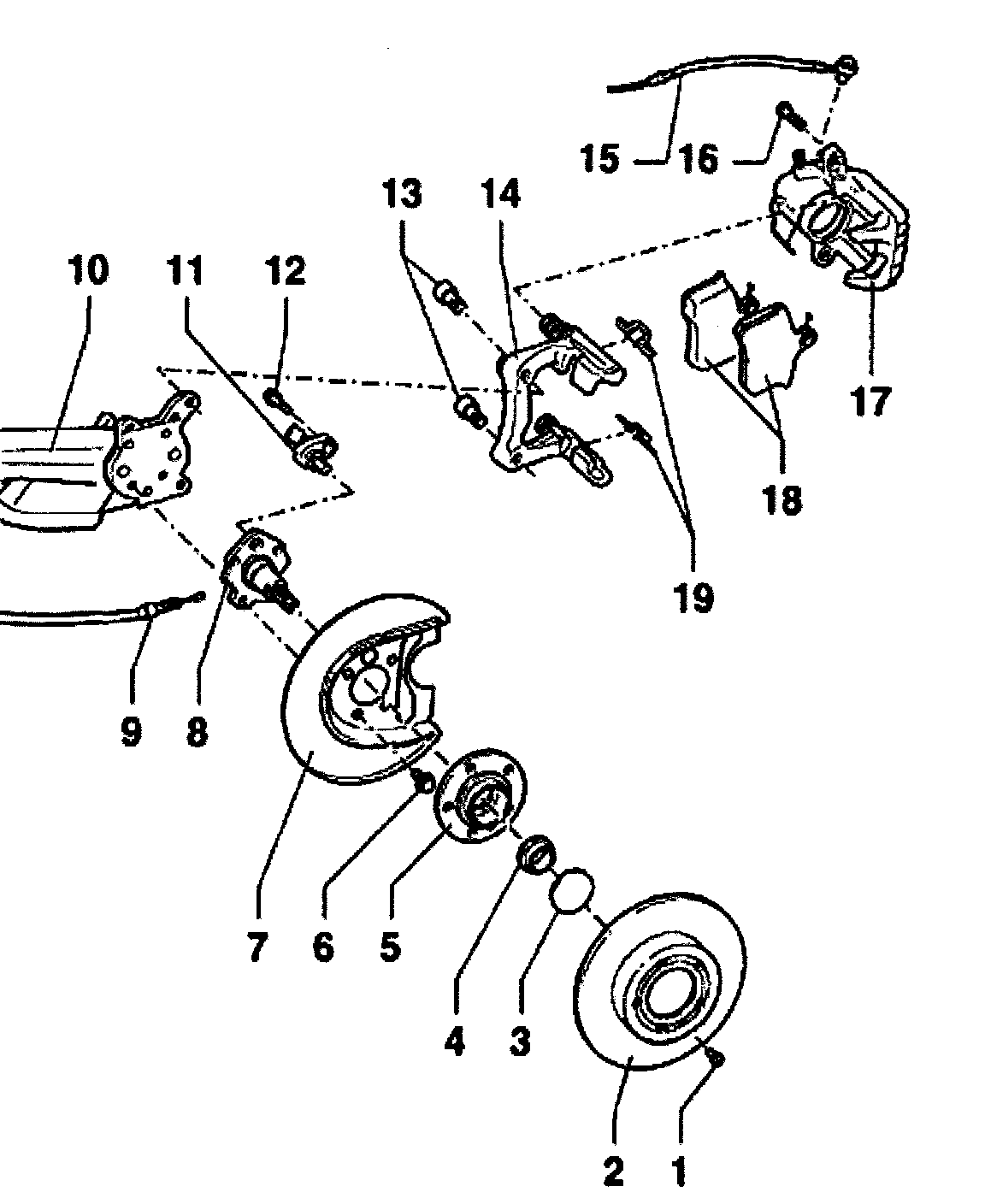

Overview

CAUTION! Before working on the brake system, read CAUTIONS and WARNINGS, Refer to Service Precautions.





1 - Screw
^ Tighten to 4 Nm (35 inch lbs.)
2 - Brake disc
^ Thickness: 9 mm (0.354 inch)
^ Wear limit: 7 mm (0.275 inch)
^ When worn, always replace on both sides.
3 - Cap
^ Removing and installing
Refer to Transmission and Drivetrain.
4 - Selflocking nut
^ Tighten to 175 Nm (129 ft. lbs.)
^ Always replace after removing
5 - Wheel hub with wheel bearing and rotor
^ Always replace after removing
^ Only replace as complete unit
^ Removing and installing
Refer to Transmission and Drivetrain.
6 - Bolt
^ Tighten to 60 Nm (44 ft. lbs.)
^ With dished spring washer
7 - Splash shield
8 - Stub axle
9 - Parking brake cable
^ Adjusting parking brake, Refer to Parking Brake.
10 - Axle beam
11 - ABS wheel speed sensor
^ Before inserting sensor, clean installation hole inner surface and coat with grease, Part No. G 000650
12 - Sockethead bolt
^ Tighten to 8 Nm (71 inch lbs.)
13 - Sockethead bolt
^ Tighten to 65 Nm (48 ft. lbs.)
14 - Brake carrier with guide pins and protective cap
^ Supplied as replacement part assembled with sufficient grease on guide pins
^ If protective caps or guide pins are damaged use repair kit. Use grease packet supplied to lubricate guide pins.
15 - Brake hose/line
^ With banjo bolt and seals
^ Banjo bolt to brake caliper tightening torque: 39 Nm (29 ft. lbs.)
^ Do not disconnect brake hose when changing brake pads
16 - Selflocking bolt
^ Tighten to 35 Nm (26 ft. lbs.)
^ Always replace
17 - Brake caliper
^ Adjust parking brake cable after maintenance or replacement.
^ Do not pull parking brake before adjusting it!
Refer to Parking Brake.
18 - Brake pads
^ Thickness 12 mm (0.472 inch)
^ Always replace brake pads on same axle on both sides of vehicle
^ Removing and installing, Refer to Brake Pads.
19 - Pad retaining springs
^ Always replace springs when changing pads
