Home >> Volkswagen >> 2001 >> New Beetle GL (1C1) L4-2.0L (AVH) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Itt Mark 20 Ie on-Board Diagnostic (OBD) >> Test Step 7

Test Step 7

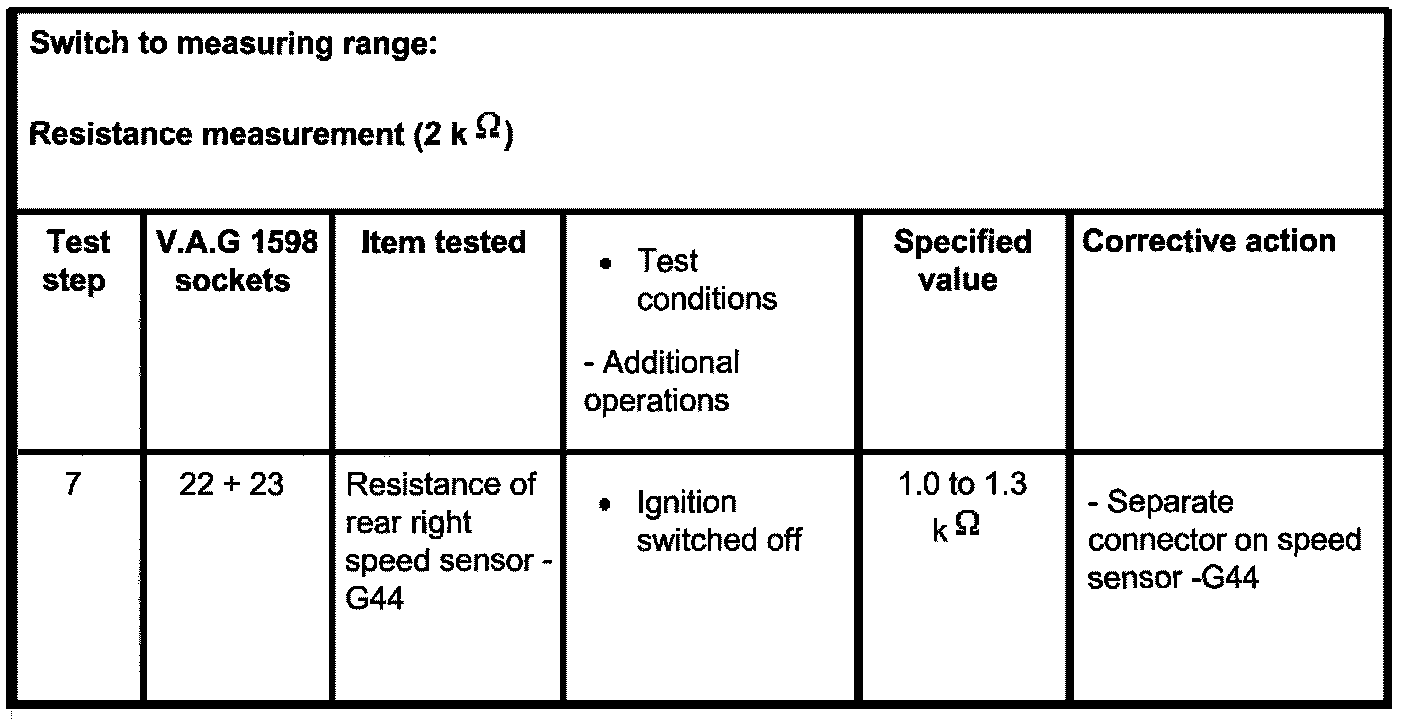

Test Step 7 (Part 1 of 2)

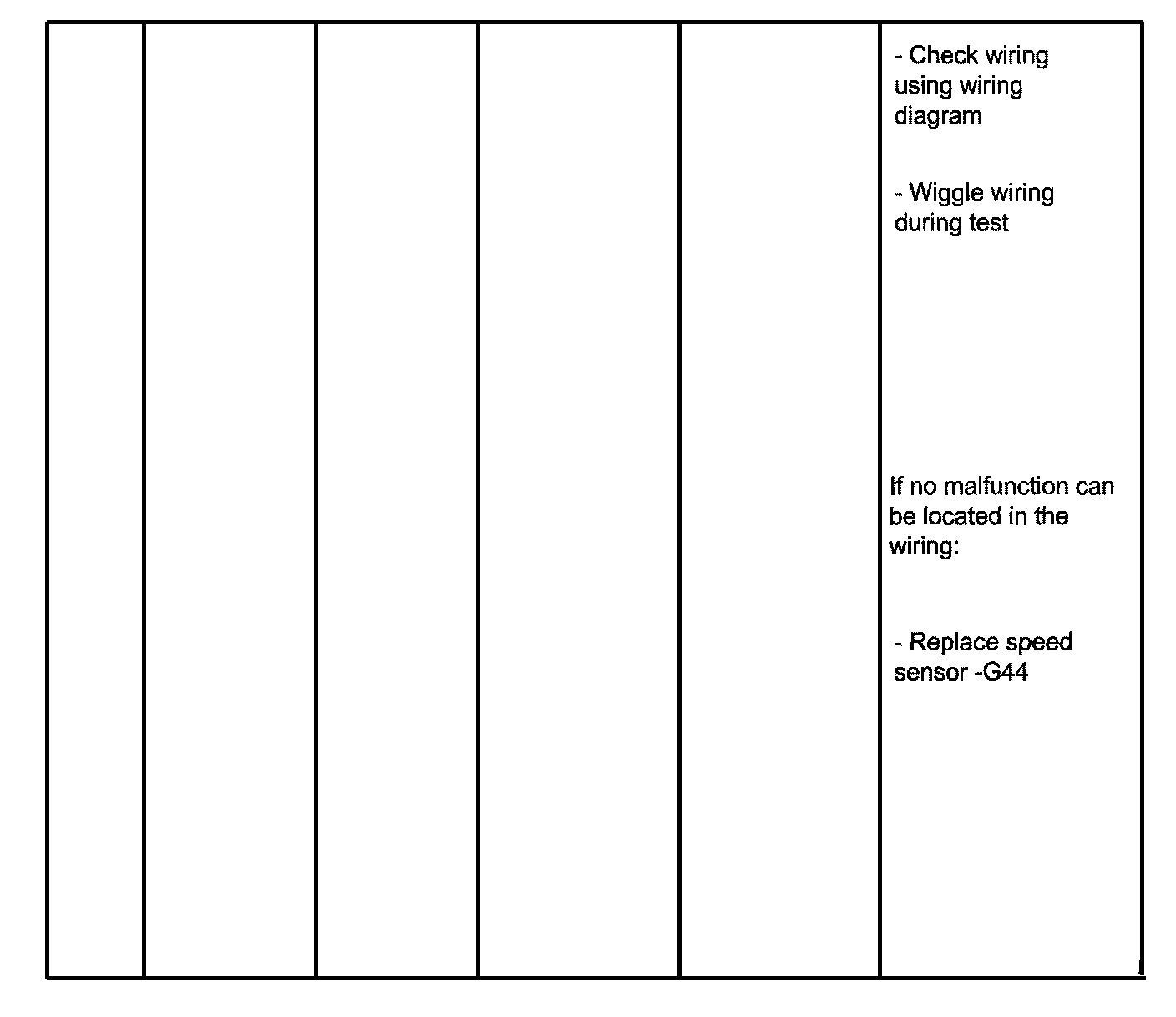

Test Step 7 (Part 2 of 2)
