Flow of Diagnosis
Flow of Diagnosis
Troubleshooting using VAG 1551 Scan Tool (ST) on "Automatic transmission"

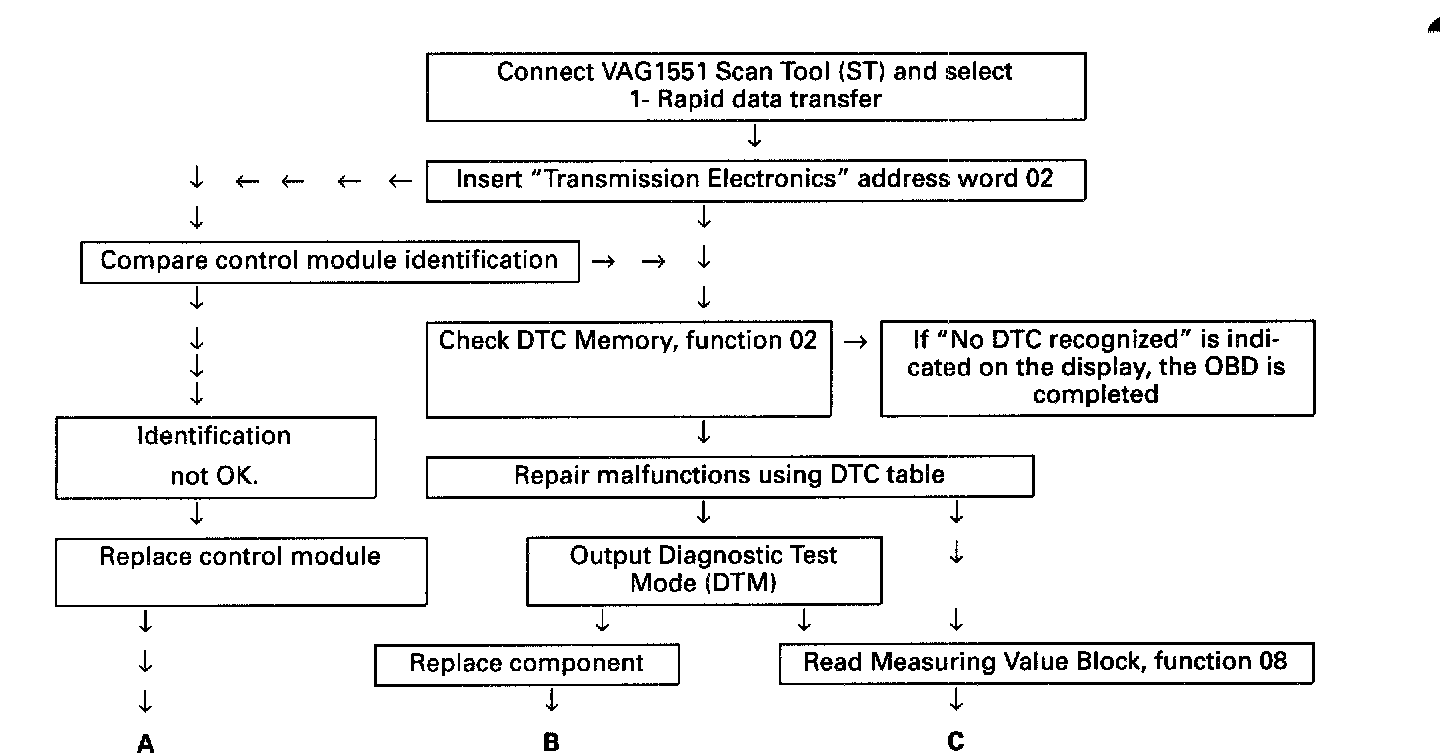

Chart 1 of 2

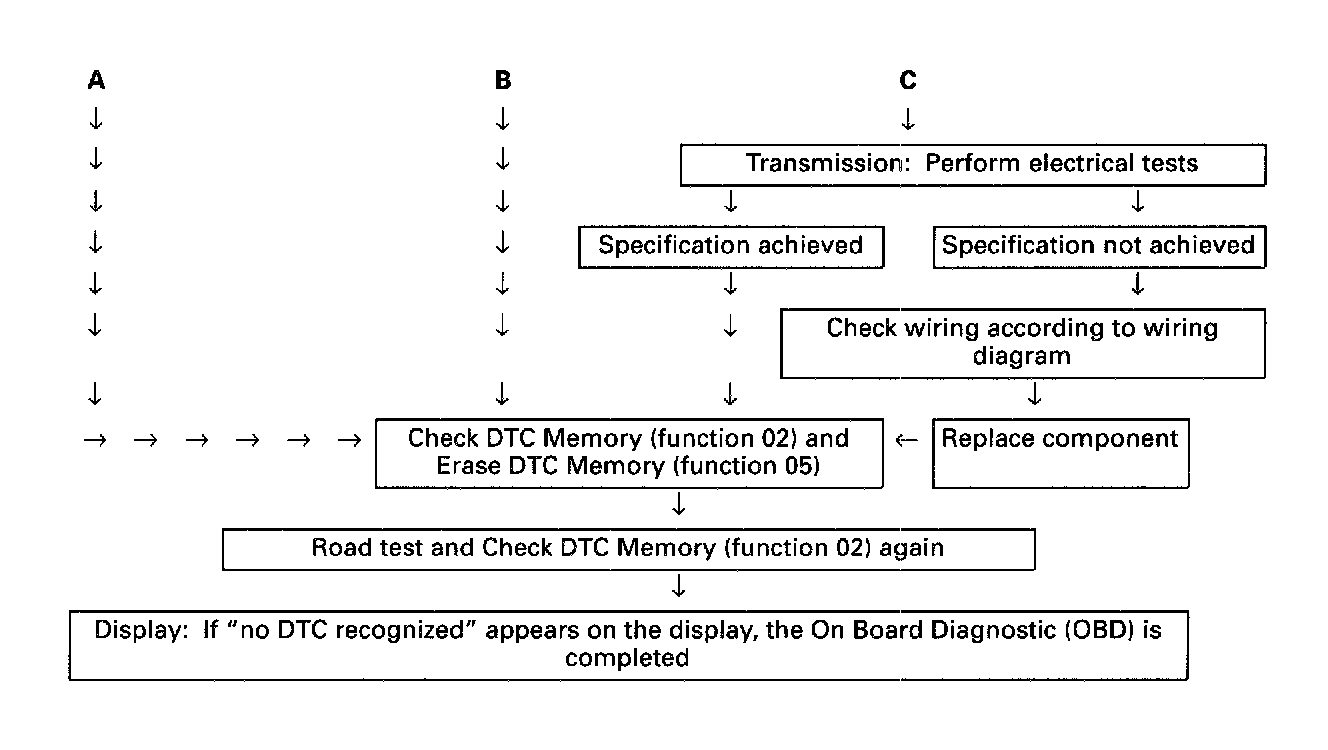

Chart 2 of 2
