Differential Mount: Service and Repair

Transmission support bonded rubber mounting, pressing in and out

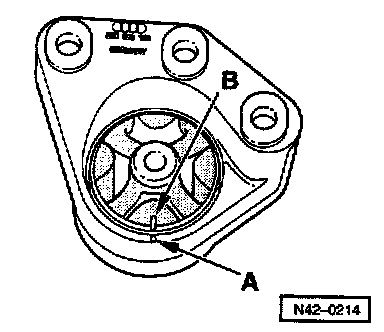

Fig. 1 Installed position of bonded rubber mounting in transmission support
- Mark installed position on transmission support (arrow A) with felt-tipped pen.

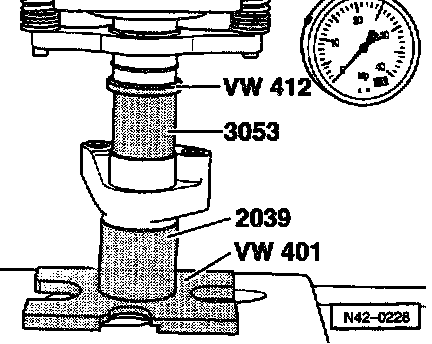

Fig. 2 Pressing bonded rubber mounting out of transmission support

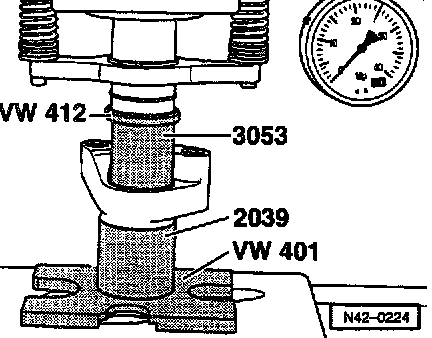

Fig. 3 Pressing bonded rubber mounting into transmission support
- Position bonded rubber mounting so that one rubber pin aligns with marking.
