Wiring Harness: Service and Repair

Wiring harness in transmission, removing and installing
Removing
Remove the valve body.





- Using small screwdriver, pry out retaining tabs on solenoid valve harness connectors, and disconnect harness connectors -A- one-after-another.
- Disengage wiring harness front retainers -B- on side of valve body.

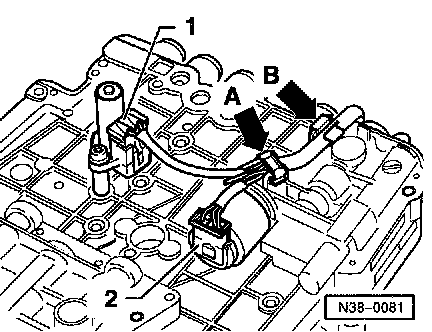

- Turn valve body over and disconnect harness connector from sensor for transmission RPM -G182- (item -1-).
- Remove first retaining clip (arrow -A-) and unclip wiring harness from second retaining clip (arrow -B-).
- Disconnect harness connector -2- from solenoid valve 4 -N91-.

Installing
Installation is the reverse of removal.
- When installing wiring harness, connect harness connectors onto respective solenoid valves.
- Clip wiring harness into retaining clips provided. If not installed correctly, harness can be trapped when valve body is installed.
- Install the valve body.
