Removing and Installing
Valve Body, Removing And Installing
WARNING: Do not run engine or tow the vehicle with the oil pan removed or when there is no ATF in transmission.
Notes:

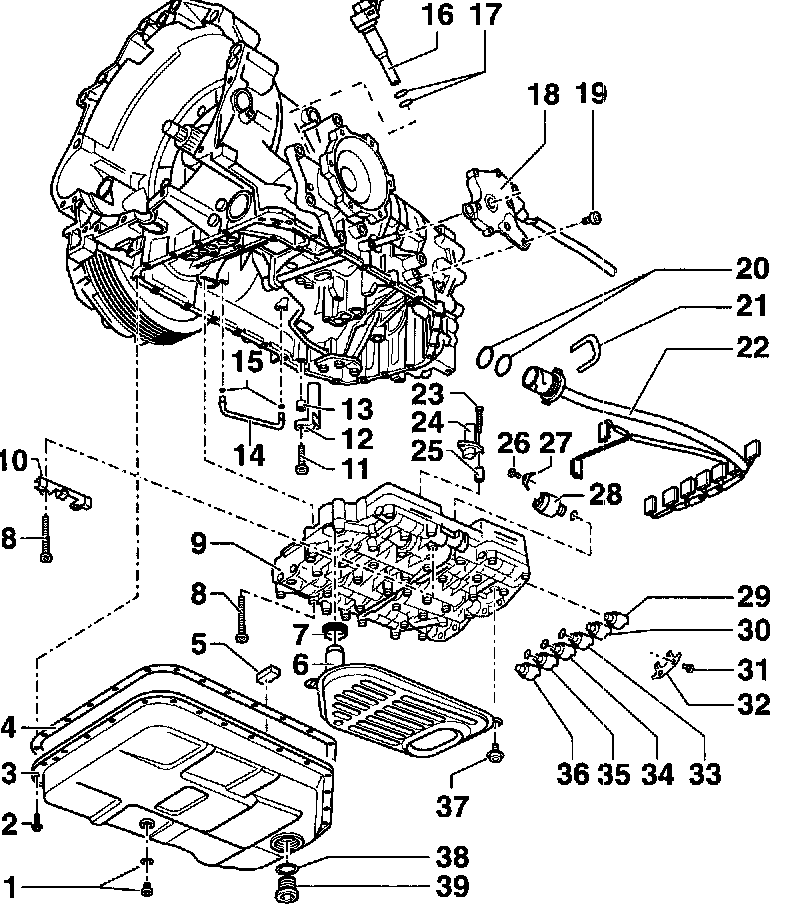

^ The valve body and the items illustrated can be removed when the transmission is in the vehicle.
^ Lubricate O-rings with ATF when installing.
^ Always replace a valve body which is fouled or malfunctioning.
^ Do not use fluffy cloths.
^ After re-installing the oil pan, fill with ATF.
1. Drain plug
^ Always replace
^ 40 Nm (30 ft. lbs.)
^ With seal
^ Remove plug to drain ATF.
2. Bolt
^ 10 Nm (7 ft. lbs.)
^ Tighten oil pan bolts in several stages and in diagonal sequence
3. Oil pan
4. Gasket
^ Always replace
5. Magnet
^ 4 magnets located in depressions in oil pan
6. ATF screen
^ Removing and installing
7. Gasket
^ Use Kukko 18/0 puller to pull off ATF strainer
^ Press onto suction collar on ATF screen
8. Bolt
^ 8 Nm (71 inch lbs.)
^ Removing and installing
^ Observe correct tightening sequence
Bolts securing valve body:
^ 1 bolt: M x 30
^ 16 bolts: M x 60
9. Valve body
^ Select correct version according to transmission code
^ Removing and installing
10. Retainer
^ For wiring harness
^ Engage wiring harness on bracket
^ Secured with bolts for valve body
11. Bolt
^ 6 Nm (53 inch lbs.)
12. Transmission Vehicle Speed Sensor (VSS) -G38-
13. Spacer sleeve
^ Length: 8 mm
14. Internal oil line
^ Always replace
15. O-ring
^ Always replace
16. Speedometer Vehicle Speed Sensor (VSS) -G22-
^ Replacing
17. O-ring
^ Always replace
18. Multi-function Transmission Range (TR) switch -F125-
19. Bolt
^ 8 Nm (71 inch lbs.)
20. O-rings
21. Securing clip
^ Always replace
22. Wiring harness
^ Transmission fluid temperature sensor -G93- integrated in wiring harness
^ Remove and install valve body in order to replace wiring harness
^ Disengage harness from retainer -10-
^ Position of harness connector on harness: flat part of rear collar faces toward oil pan; lugs on collar are horizontal
23. Bolt
^ 6 Nm (53 inch lbs.)
24. Sensor for transmission RPM -G182-
^ Replacing
25. Spacer sleeve
^ Length: 20 mm
26. Bolt
^ 6 Nm (53 inch lbs.)
27. Retainer
^ For solenoid valve
28. Solenoid valve
4. N91-
^ With O-ring
^ To replace: remove and install valve body
29. Solenoid valve 3 -N90-
^ Without O-ring
^ To replace: remove and install oil pan
30. Solenoid valve 2 -N89-
^ Without O-ring
^ To replace: remove and install oil pan
31. Bolt
^ 6 Nm (53 inch lbs.)
32. Retainer
^ For solenoid valves
33. Solenoid valve 6 -N93-
^ With O-ring
^ To replace: remove and install oil pan
34. Solenoid valve 7 -N94-
^ With O-ring
^ To replace: remove and install oil pan
35. Solenoid valve 5 -N92-
^ With O-ring
^ To replace: remove and install oil pan
36. Solenoid valve 1 -N88-
^ Without O-ring
^ To replace: remove and install oil pan and remove guide plate for parking lock mechanism
^ When installing, do not tighten bolts for guide plate (23 Nm or 17 ft. lbs.) with selector lever in "P"
37. Bolt
^ 6 Nm (53 inch lbs.)
38. O-ring
^ Always replace
39. ATF inspection plug
^ 80 Nm (59 ft. lbs.)
