Shift Cable: Testing and Inspection

Selector lever cable, checking and adjusting
Special tools and equipment

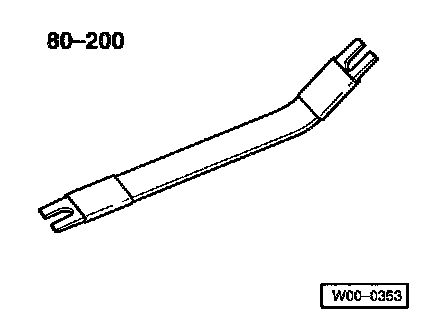

80-200 Pry lever

Checking
- Shift selector lever into "P" position.
- Raise vehicle.
- Remove left-hand protective plate on transmission.

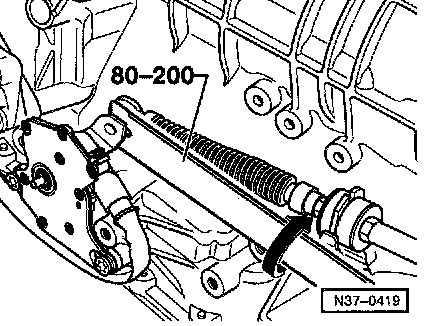

- Remove selector lever cable from selector shaft lever (arrow).
- Shift selector lever from "P" to "2."
^ Selector lever mechanism and selector lever cable must move freely. If necessary, replace selector lever cable or service selector lever mechanism.
- Shift selector lever into "P" position.
- Shift selector shaft lever to "P" parking lock must engage.
^ It should be possible to push selector lever cable onto selector shaft lever. Adjust selector lever cable if necessary.
