Procedures

Torque Converter Seal, Removing And Installing

Special tools and equipment

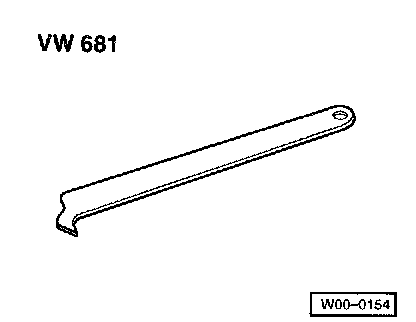

^ VW681 Extractor lever

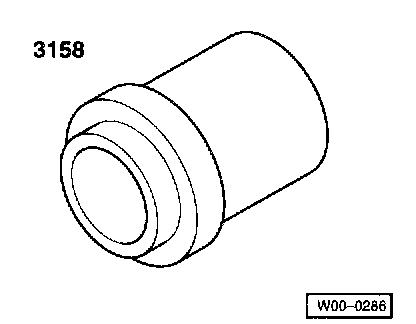

^ 3158 Drift sleeve





Removing torque converter seal

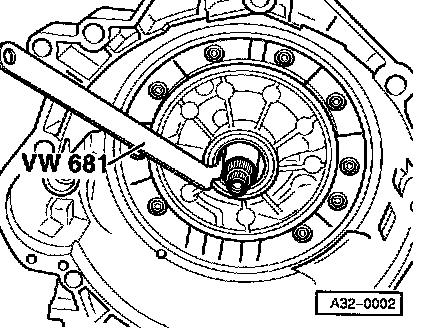

- Apply VW681 extractor lever directly behind sealing lip of seal to avoid damaging bearing ring.
- Install bearing ring.

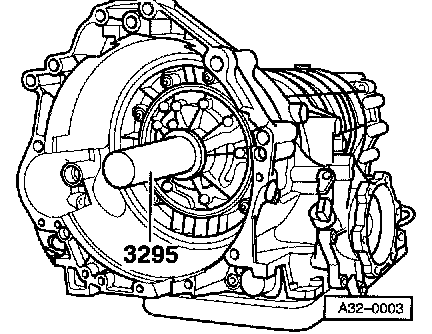

Driving in torque converter seal until flush
