Cross-Member Bonded Rubber Mounting

Crossmember bonded rubber mounting, pressing in and out

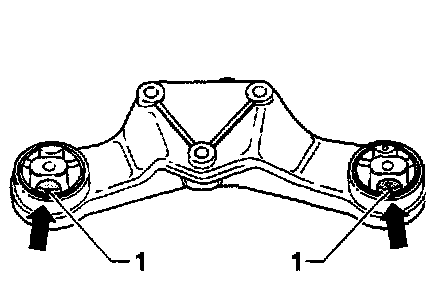

Fig. 1 Installed position of bonded rubber mounting in crossmember
- Mark installed position (arrows) with a felt-tipped marker.

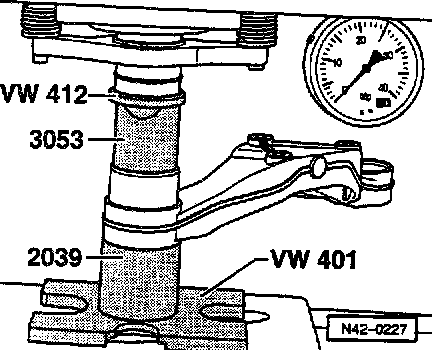

Fig. 2 Pressing bonded rubber mounting out of crossmember

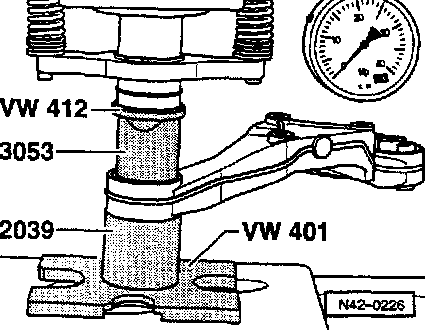

Fig. 3 Pulling bonded rubber mounting into crossmember





- Position bonded rubber mounting so that one rubber pin -1- in illustration.
