01V Automatic Transmission

Selector lever cable, removing and installing
Special tools and auxiliary items

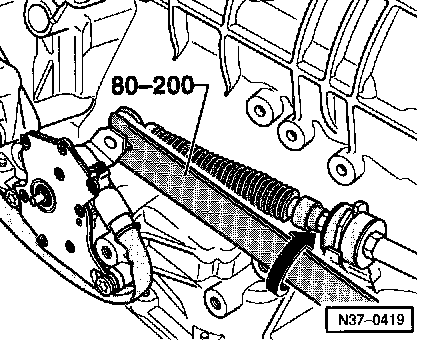

^ Removal lever 80-200

Removing
- Shift selector lever into "P" position.
- Raise vehicle.
- Unbolt front heat shield from bottom of mounting bracket and slide rearward.

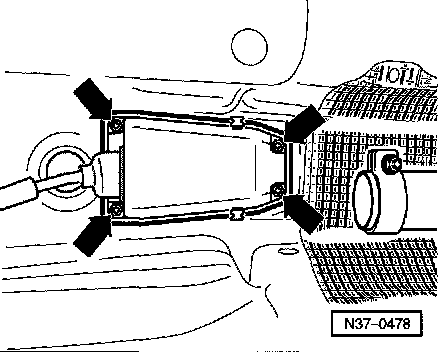

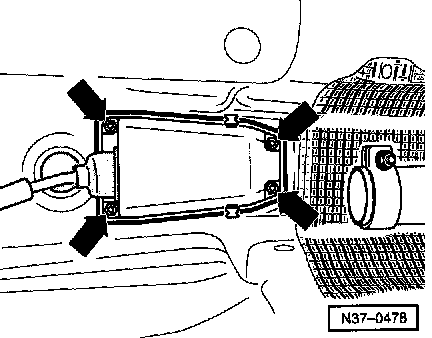

- Remove cover from mounting bracket (arrows).
Disconnect selector lever cable from mounting bracket as follows:

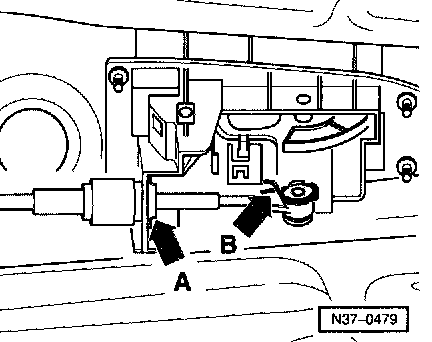

- Press ends of securing clip -B- together and remove.
- Pull down locking plate -A- (for securing selector lever cable to mounting bracket) and remove.
- Pull selector lever cable off selector lever.

- Remove selector lever cable from selector shaft lever (arrow).
- Remove support bracket from transmission.
- Release selector lever cable from support bracket.
- Pull selector lever cable from mounting bracket, while ensuring cable does not kink.

Installing
- Shift selector lever and selector shaft lever to position "P" (parking lock must engage).
- Do not bend or kink selector lever cable, lightly grease cable eye and cable ends before installing.
- Insert selector lever cable in mounting bracket.
- Connect selector lever cable to selector lever.

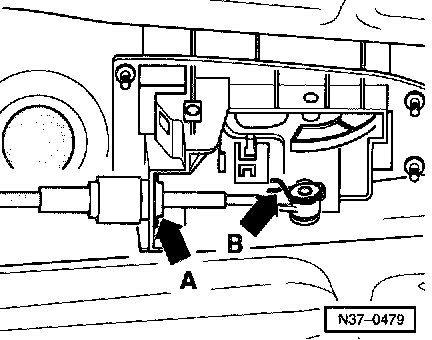

- Install locking plate -A- for selector lever cable on mounting bracket.
Installation position: Angled end of locking plate must point toward end of selector lever cable.
- Connect selector lever cable to support bracket (hand-tight).
- Bolt support bracket to transmission (hand-tight).
- Press selector lever cable onto selector shaft lever.
- Align selector cable lever in support bracket.

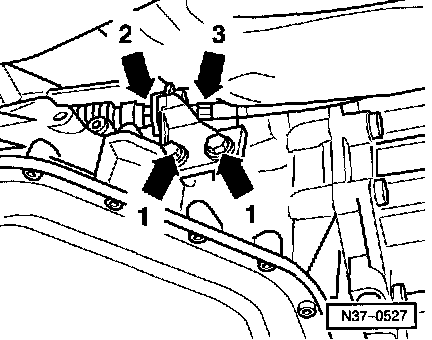

- Tighten bolts securing support bracket to transmission (arrows -1-) (counterhold at hex (arrow -3-) and secure selector lever cable to support bracket (arrow -2-), using torques as specified.

- Tighten the four nuts to 10 Nm (7 ft. lbs.).
- Check selector lever cable adjustment, adjust if necessary.
- Install heat shield.

Tightening torques
Support bracket/selector lever cable to transmission: 12 Nm (9 ft. lbs.)
Selector lever cable to support bracket: 23 Nm (17 ft. lbs.)
