01N Automatic Transmission

Selector lever cable, removing and installing
Removing
- Shift selector lever into Park position "P"
- Raise vehicle.
- Unbolt front heat shield.

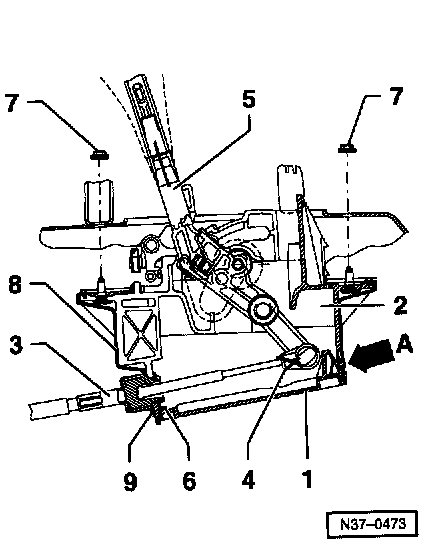

- Release cover -1- snap lock by pressing in direction of arrow -A-.
- Take cover off mounting bracket -2-.
- Separate selector lever cable -3- from mounting bracket as follows:
- Press ends of securing clip -4- together and remove.
- Pull selector lever cable off selector lever -5-.
- Pull locking plate -6- for selector lever cable on mounting bracket out downward.
- Ensure selector lever cable is not kinked.
- Remove selector lever cable protective plate.

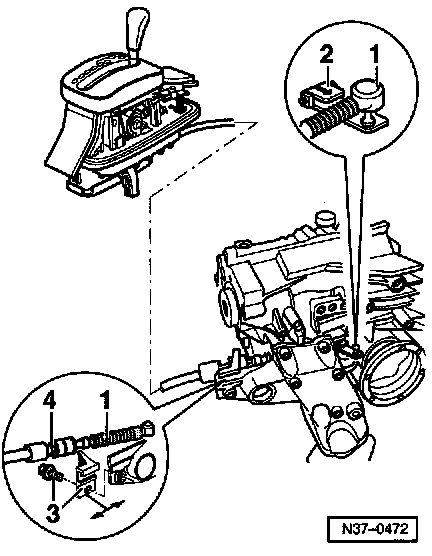

- Take selector lever cable -1- off selector shaft lever -2- on transmission upward.
- Remove support bracket -3- from right transmission support.
- Release selector lever cable from support bracket At-.

Installing
^ Move selector lever and selector shaft lever to Park position " P"(parking lock must engage).
Reinstall in reverse sequence.
- Do not bend or kink the selector lever cable, lightly grease cable eye and cable ends before installing.
- heck and adjust selector lever cable Adjustments

Tightening torques
Support bracket/selector lever cable to transmission 23 Nm (17 ft. lbs.)
Selector lever cable to support bracket 12 Nm (9 ft. lbs.)
