Wiring Harness: Service and Repair

Wiring harness in transmission, removing and installing
Removing
Remove the valve body.

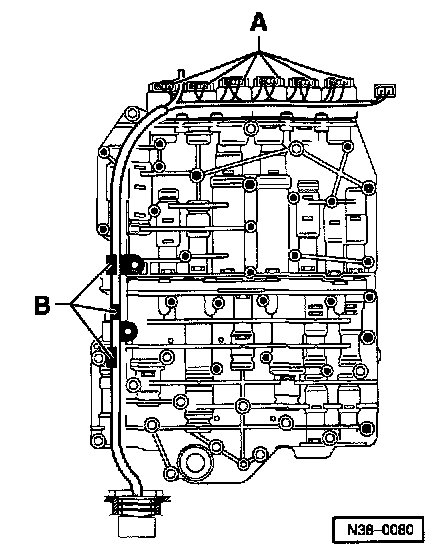

- Using a small screwdriver, pry out retaining tabs on solenoid valve connectors, and pull off connectors -A- one after the other.
- Release wiring harness from retainers -B- on side of valve body.

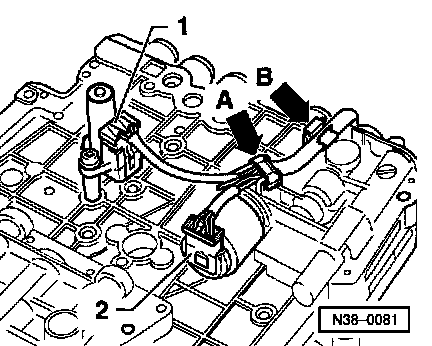

- Turn valve body over, and disconnect connector from Transmission Input Speed sensor -G182- -1-.
- Remove first retaining clip (arrow A) and unclip harness from second retaining clip (arrow B).
- Pull connector -2- off solenoid valve -N91-.

Installing
Installation is performed in reverse sequence.
- When installing harness, plug connectors on respective solenoid valves.
- Clip harness in retaining clips provided. If not installed correctly, the harness can be trapped when the valve body is installed.
- Install the valve body.
