01V Automatic Transmission

Adjusting
^ Selector lever cable disconnected from selector shaft lever.
- Move selector lever into "P" position.
- Move selector shaft lever to "P". Parking lock should engage and it should not be possible to turn front wheels in the same direction.

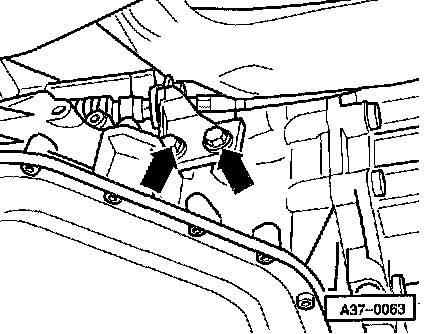

- Loosen bolts (arrows) securing support bracket to transmission.
- Press selector lever cable onto selector shaft lever.
- Align selector lever cable in support bracket.
- Tighten bolts (arrows) for support bracket 23 Nm (17 ft. lbs.).
- Check selector mechanism. Shifter A/T
