Home >> Volkswagen >> 2000 >> Passat Sedan (3B2) V6-2.8L (AHA) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Electrical Testing (TCM Pinout Charts) >> 5 Speed Automatic 01V >> Electrical Test Tables (Pinout Charts) >> Test Steps 11 to 13

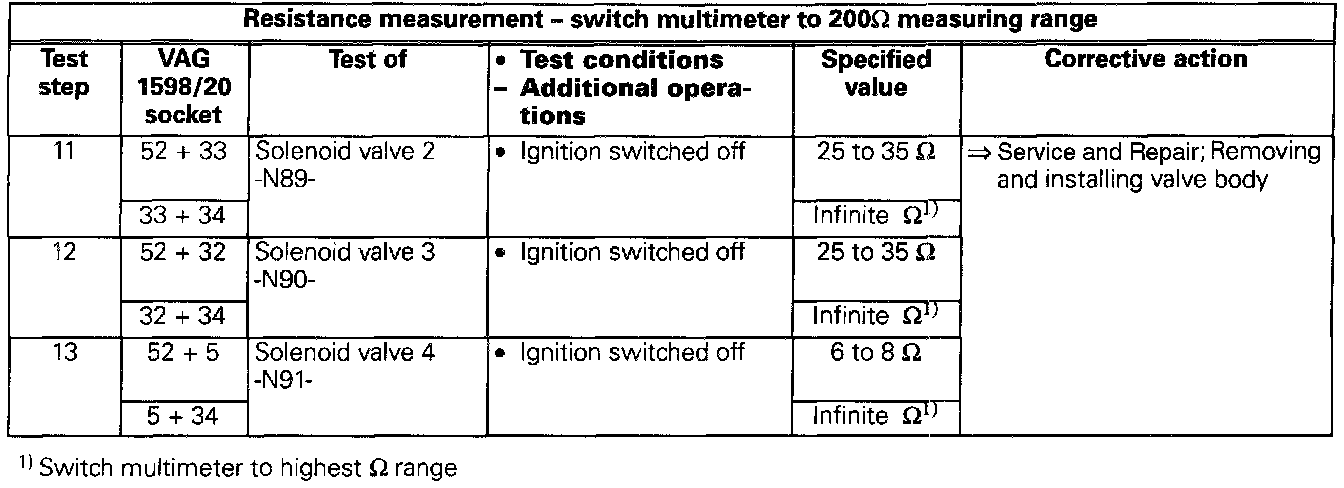

Test Steps 11 to 13
