Home >> Volkswagen >> 2000 >> Passat Sedan (3B2) V6-2.8L (AHA) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Electrical Testing (TCM Pinout Charts) >> 4 Speed Automatic 01N >> Electrical Test Tables (Pinout Charts) >> Test Steps 1 to 3

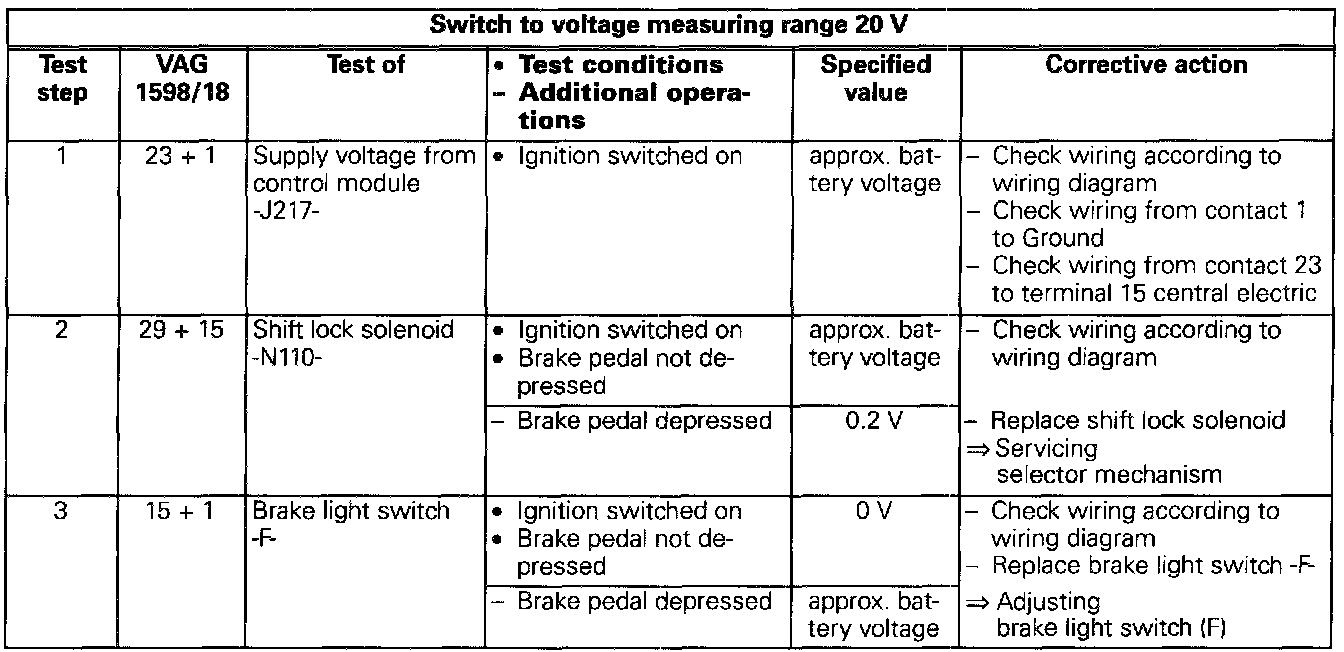

Test Steps 1 to 3
