Lock Cylinder, Removing and Installing

CAUTION!
- Before beginning repairs on the electrical system:
- Obtain the anti-theft radio security code.
- Switch the ignition off.
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows.


Removing
- Remove upper and lower steering column switch trim.

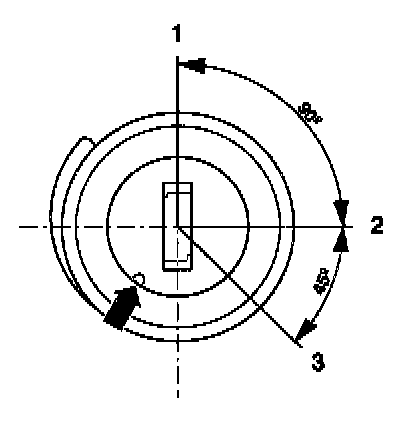

- Insert ignition key in lock cylinder and turn to "ON" position.
- Position 1. "OFF"
- Position 2. "ON /DRIVE"
- Position 3. "START"





- Insert steel wire (approx. 1.2 mm) in drilling next to ignition key -arrow-.
- Steering lock must be dismantled if the steel wire cannot be guided into the drilling correctly.

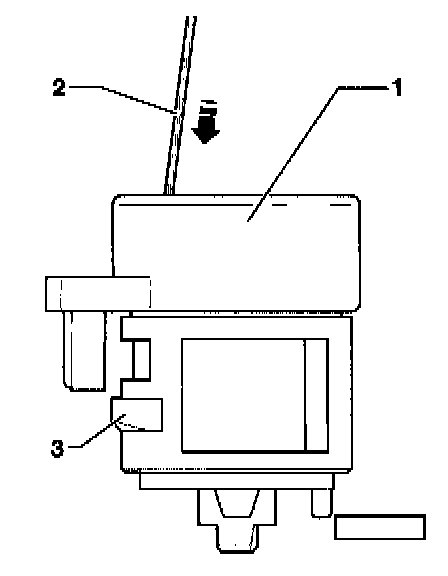

- Release lock cylinder securing lever using wire -arrow- and remove lock cylinder from steering lock housing.
- 1. Lock cylinder
- 2. Wire (approx. 1.2 mm)
- 3. Securing lever

Installing
- Insert ignition key in lock cylinder and turn to position "ON".
- Release securing lever using wire (approx. 1.2 mm) and insert lock cylinder into steering lock housing.
