Headrest Guides, Removing
Removing
- Remove left backrest [1][2]Procedures
- Remove cover and padding for left backrest.

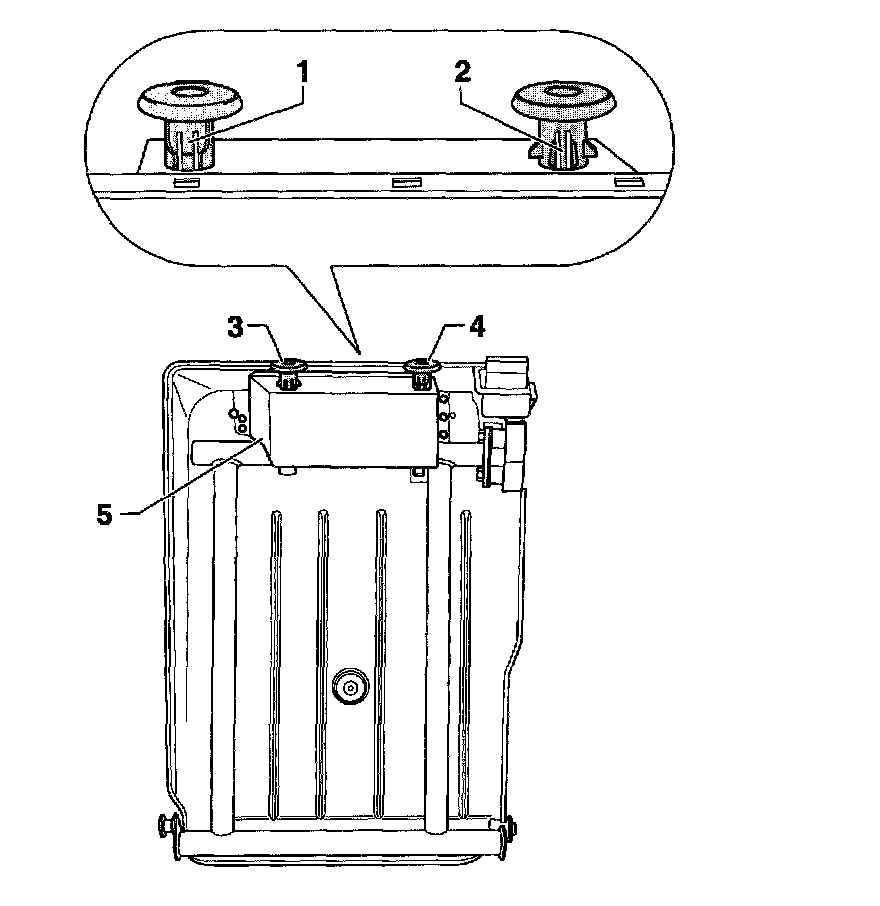

- Press locking tabs -1- and -2- and press head restraint guides -3- and 4- out of mount -5-.
Removing
- Remove left backrest [1][2]Procedures
- Remove cover and padding for left backrest.
- Press locking tabs -1- and -2- and press head restraint guides -3- and 4- out of mount -5-.
