From 10.00

Rear Light Housing, Removing And Installing

Removing
- Fold luggage compartment trim behind rear light to side.
- Remove bulb holder.

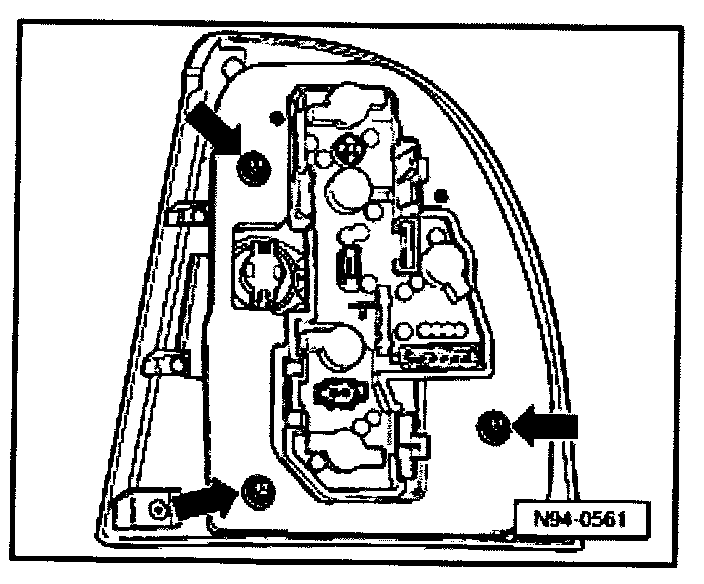

- Remove three screws -arrows- and remove housing.

Installing
- Insert housing into opening.
- Install and tighten securing nuts, 3 Nm (27 in lb).
- Install bulb holder and reconnect electrical connectors.
- Refit luggage compartment trim.
