Up To 10.00

High-Mount Brake Light

The high-mount brake light is installed in the rear of the rear shelf, directly against the rear window.

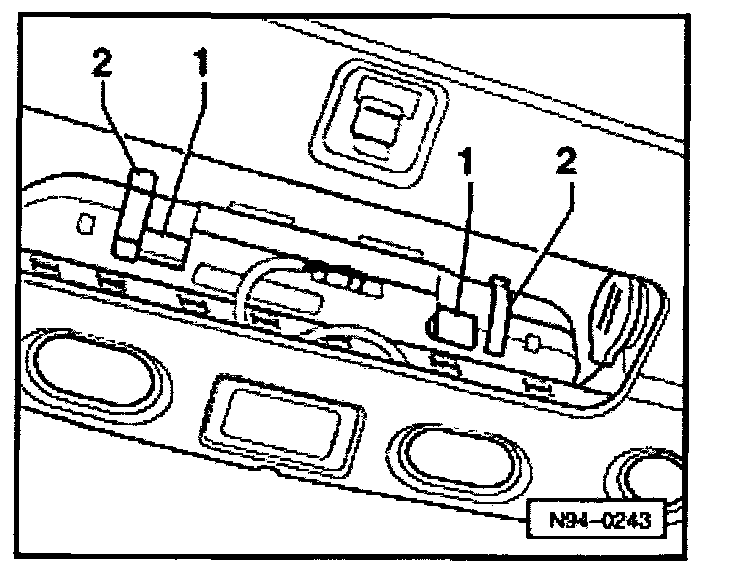

Bulb holder, removing and installing
- Disconnect electrical connector, press lock retaining spring -1- and remove bulb holder.

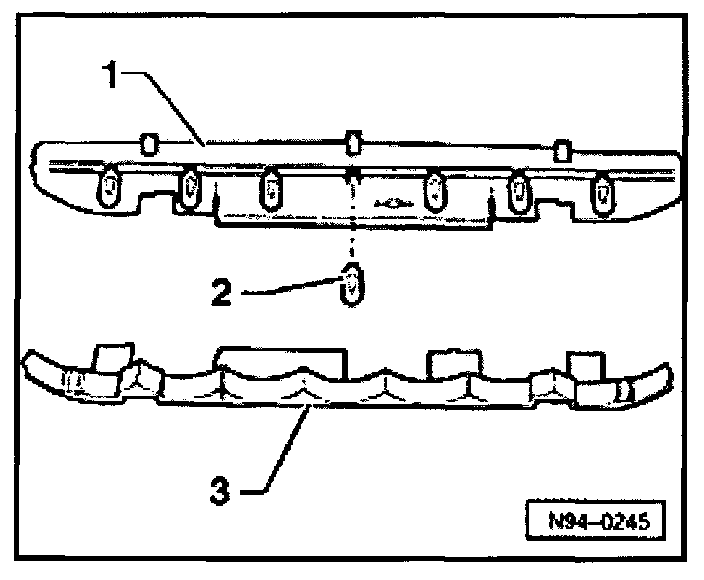

Bulbs, replacing
- Pull bulbs -2- straight out or push straight into bulb holder -1-.







High-mount brake light housing, removing and installing
- Depress retainer -2- and pull light housing from window. When doing so, engaging device of the spring must also be pushed back.
- The brake light can now be taken out upwards. When doing this ensure the rear shelf is not damaged.
