Cruise Control Servo: Adjustments

Vacuum Servo Rod, Adjusting







- Adjust as per instructions above

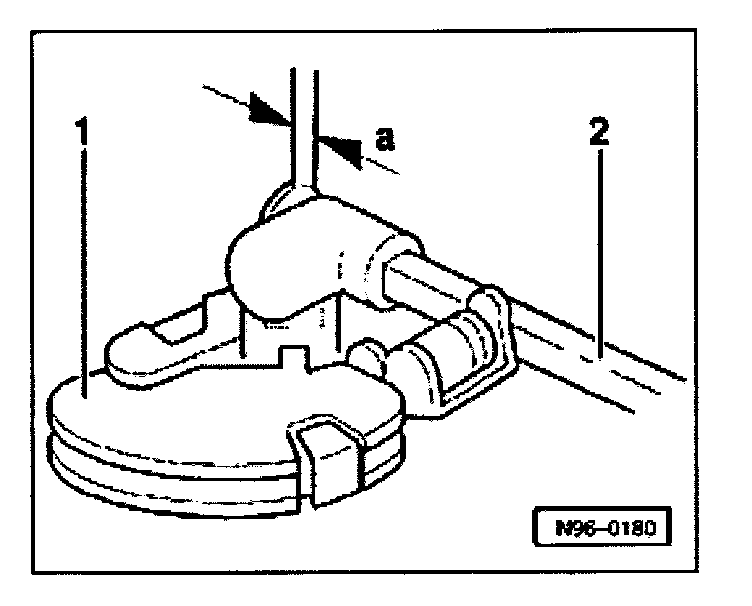

Play -a- between rod -2- and stop on throttle housing linkage -1- must be between 0.5 mm and 1.0 mm (0.019" and 0.03")
- Secure servo rod to keep from turning.
