FS III Front Brake Caliper

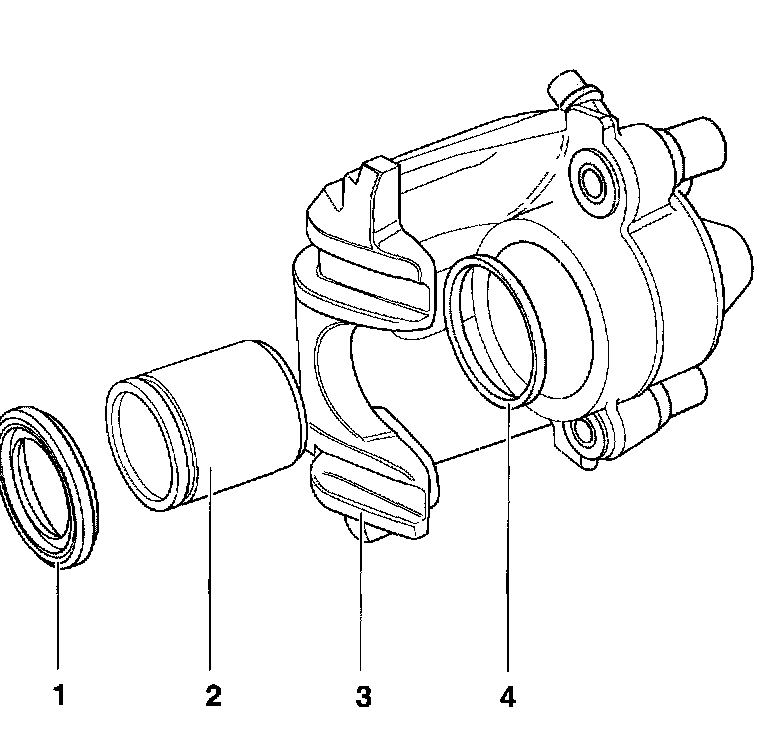

FS III Front Brake Caliper, Servicing

Note:
^ Install all parts in repair kit.
^ New brake calipers are filled with brake fluid and are pre-bled.
^ When assembling, apply thin coat of brake fluid to brake cylinders, pistons and seals.

1. Dust boot Do not damage when inserting piston
2. Piston
^ Removing and installing. FS III Brake Caliper

3. Brake caliper housing
4. Piston seal
^ Removing and installing. FS III Brake Caliper
