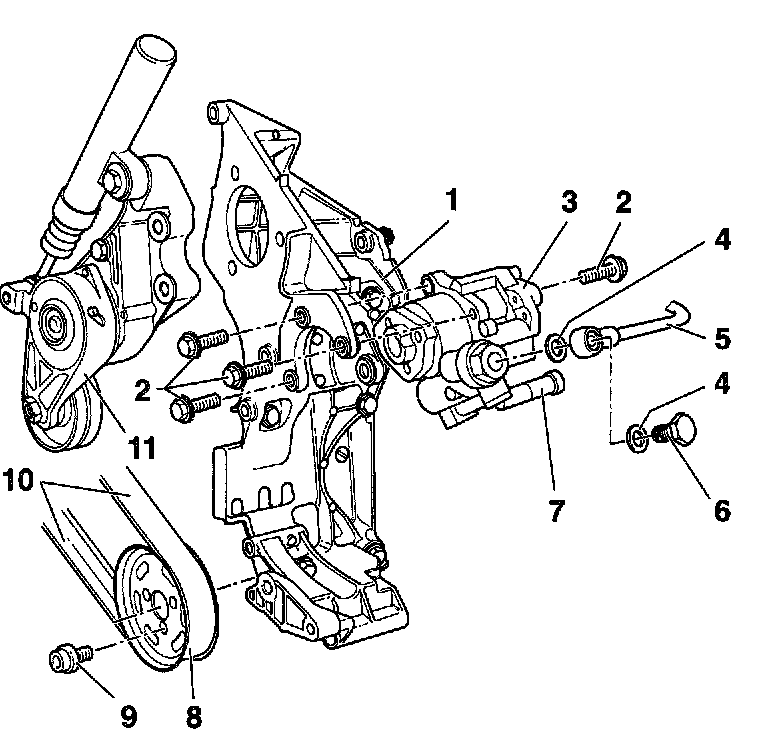

Vehicles With Pump In Upper Section

1. Bracket
2. Hex bolts
- 25 Nm (18 ft. lbs.)
3. Power steering pump
- Checking delivery pressure
- Fill with oil before installing
4. Seals
- Always replace
5. Pressure hose
6. Banjo bolt 38 Nm (28 ft. lbs.)
7. Suction hose
8. Belt pulley
9. Socket-head bolt
- 25 Nm (18 ft. lbs.)
10. Ribbed belt

CAUTION:
- Using a crayon or marker, mark the direction of travel before removing the ribbed belt. Reinstalling a used belt in the opposite direction could damage the belt.
- When installing the belt, make sure that it is correctly seated in the pulleys.

- Determine part number from parts catalog microfiche
- Removing and belt routing
- Checking condition
11. Ribbed belt tensioner
