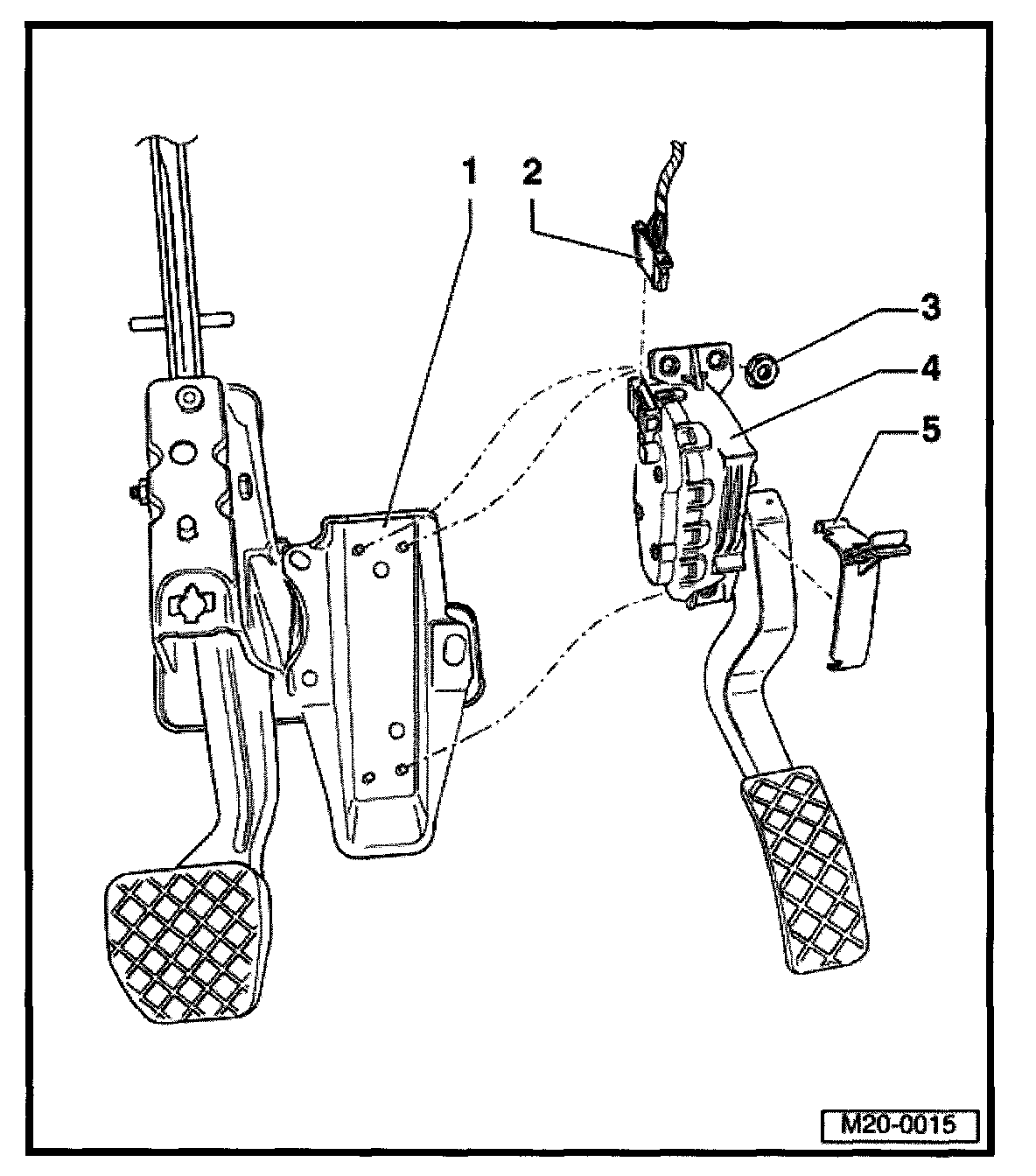

Electronic Accelerator System (E - Gas), Checking

1 - Bracket
2 - Connector
- Black, 5 pin
3 - 10 Nm
4 - Accelerator pedal position sensor (G79)
- Not adjustable
- Accelerator pedal position sensor (G79) communicates the driver's intentions to the control module
- To remove sensor, remove cover in footwell
- Checking. Testing and Inspection
5 - Bracket
- For cover in footwell
- Clipped on at accelerator pedal position sensor
