Fuel Supply System

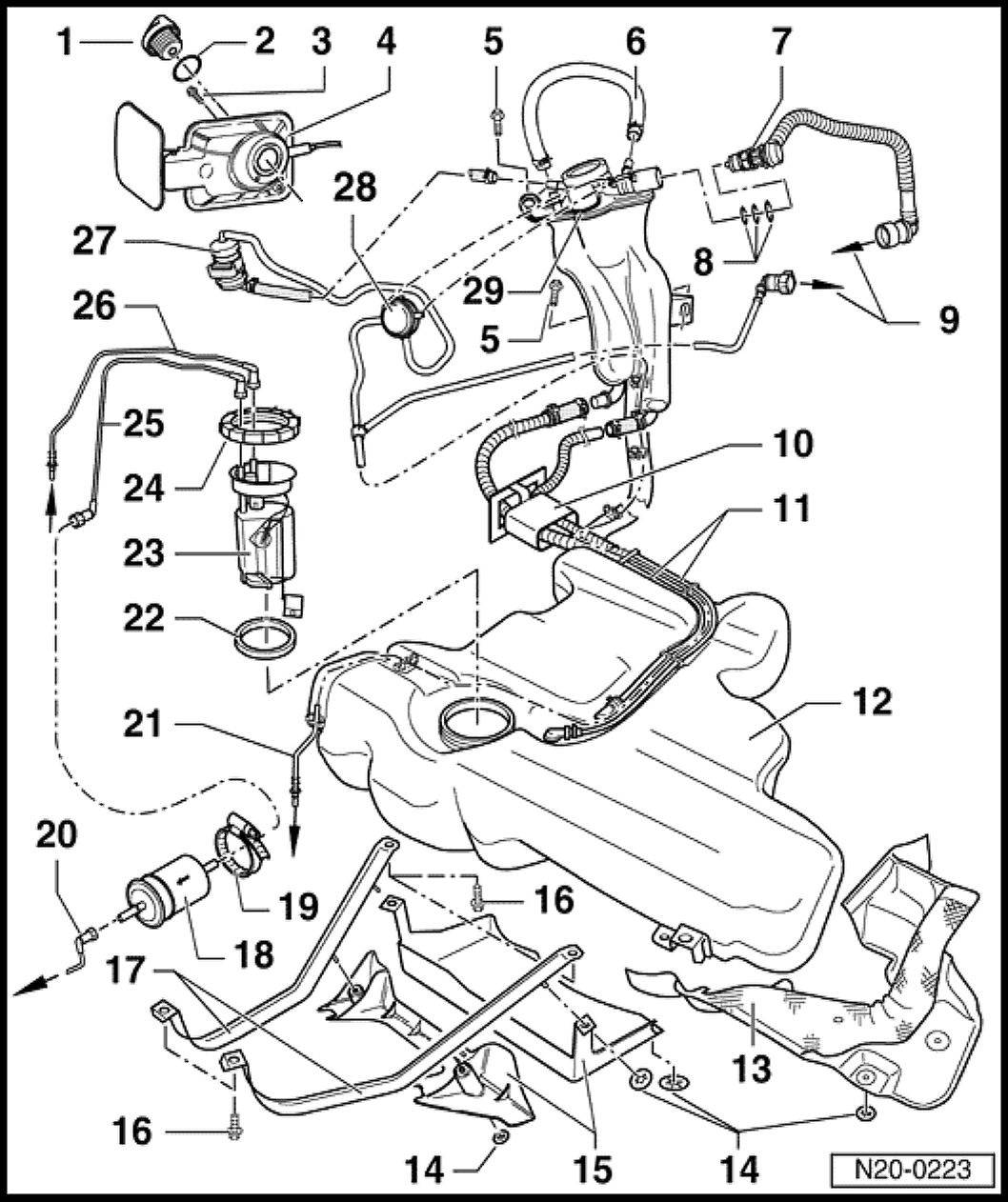

Fuel Supply system






1. Sealing cap
2. Seal
3. Securing screw
4. Tank flap unit
5. 10 Nm
6. Vent pipe
7. Change - over valve
8. O ring
9. Vent pipe
10. Wire routing
11. Vent pipe
12. Fuel tank
13. Heat shield
14. Clamping washer
15. Fuel tank cover
16. 25 Nm
17. Securing strap
18. Fuel filter
19. Screw - type clip
20. Supply pipe
21. Vent pipe
22. Sealing ring
23. Fuel delivery unit
24. Union nut
25. Supply pipe
26. Return pipe
27. Gravity/overflow valve
28. Pressure retaining valve
29. Ground connection
