Fuel Rail: Service and Repair

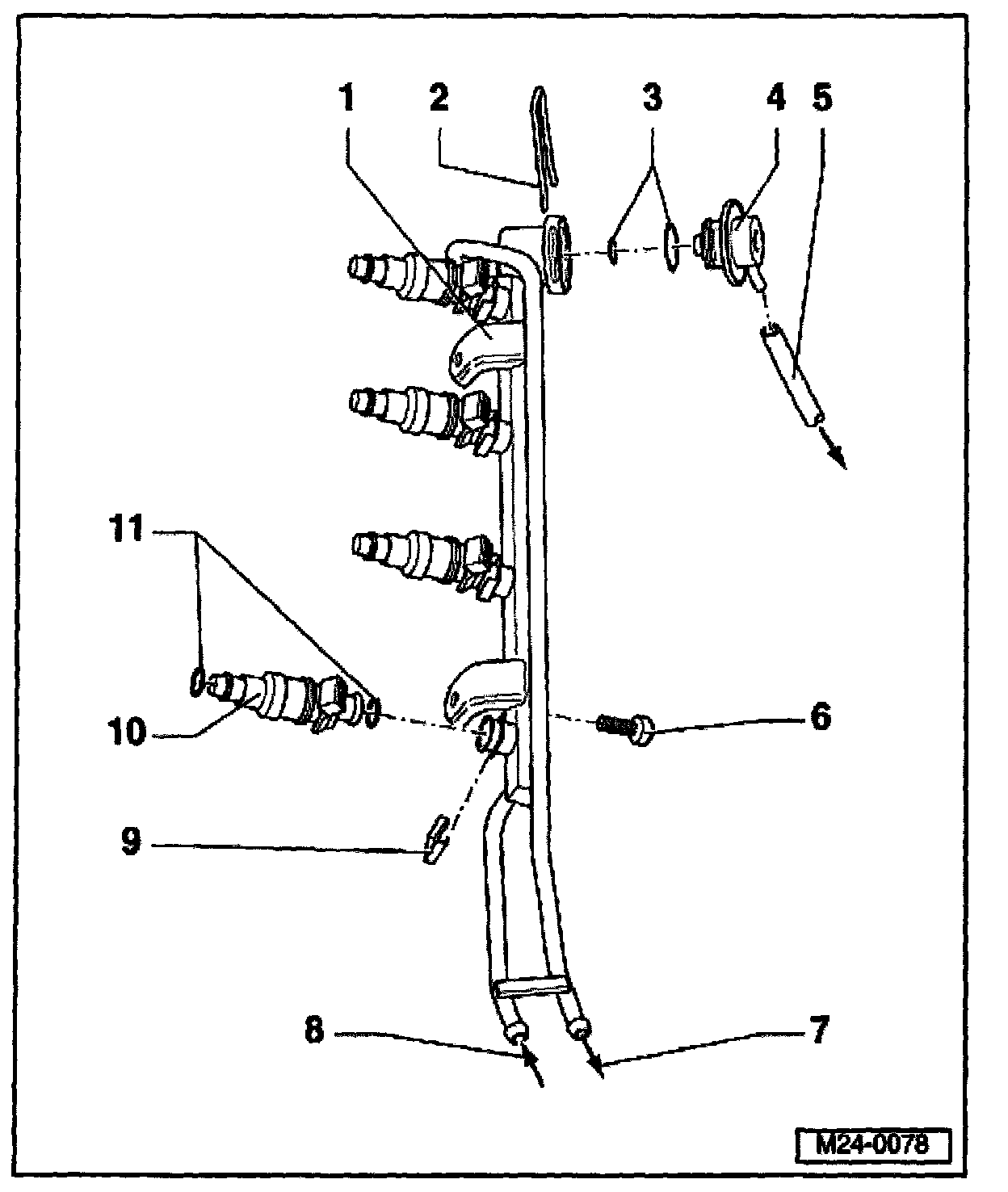

Fuel Rail With Injectors, Disassembling And Assembling







1 - Fuel rail
2 - Retaining clip
- Check securely seated
3 - O ring
- Replace if damaged
- Before installing moisten with clean engine oil
4 - Fuel pressure regulator
5 - Vacuum hose
- To intake manifold
6 - 10 Nm
7 - Return flow connection
8 - Supply connection
9 - Retaining clip
- Ensure seated correctly at injector and fuel rail
10 - Injectors (N30- N33)*
- 2 pin connector
11 - O ring
- Replace
- Before installing moisten with clean engine oil
