Manifold, Exhaust Pipe and Catalyst With Attachments

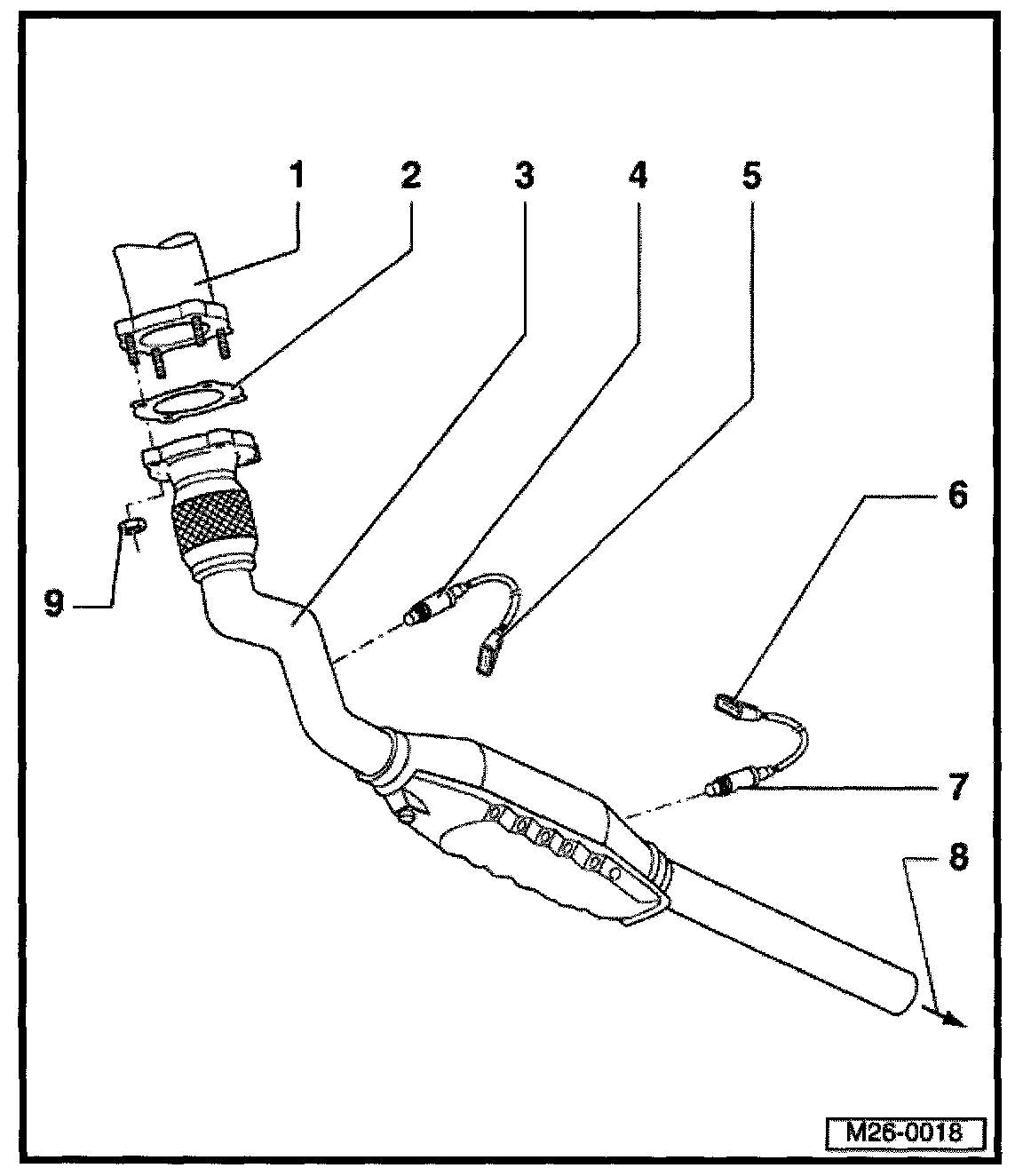

Exhaust Manifold, Front Exhaust Pipe And Catalyst With Attachments






1 - Turbocharger
2 - Gasket for front exhaust pipe
- Replace
3 - Front exhaust pipe with catalyst
4 - Lambda probe 1 in front of catalyst (G39), 50 Nm
- Grease only the threads with "G 052 112 A3;" "G 052 112 A3" must not get into the slots on the probe body
- Remove and install with ring spanner 3337
5 - 6 - pin connector
- Black
- For Lambda probe 1 before catalyst (G39) and Lambda probe heating (Z19)
- Right on underside of vehicle
6 - 4 - pin connector
- Brown
- For Lambda probe 2 after catalyst (G130) and Lambda probe heating (Z29)
7 - Lambda probe 2 after catalyst (G130), 50 Nm
- Fitting location: in catalyst
- Grease only the threads with "G 052 112 A3;" "G 052 112 A3" must not get into the slots on the probe body
- Remove and install with ring spanner 3337
8 - To center silencer
9 - 40 Nm
- Replace
