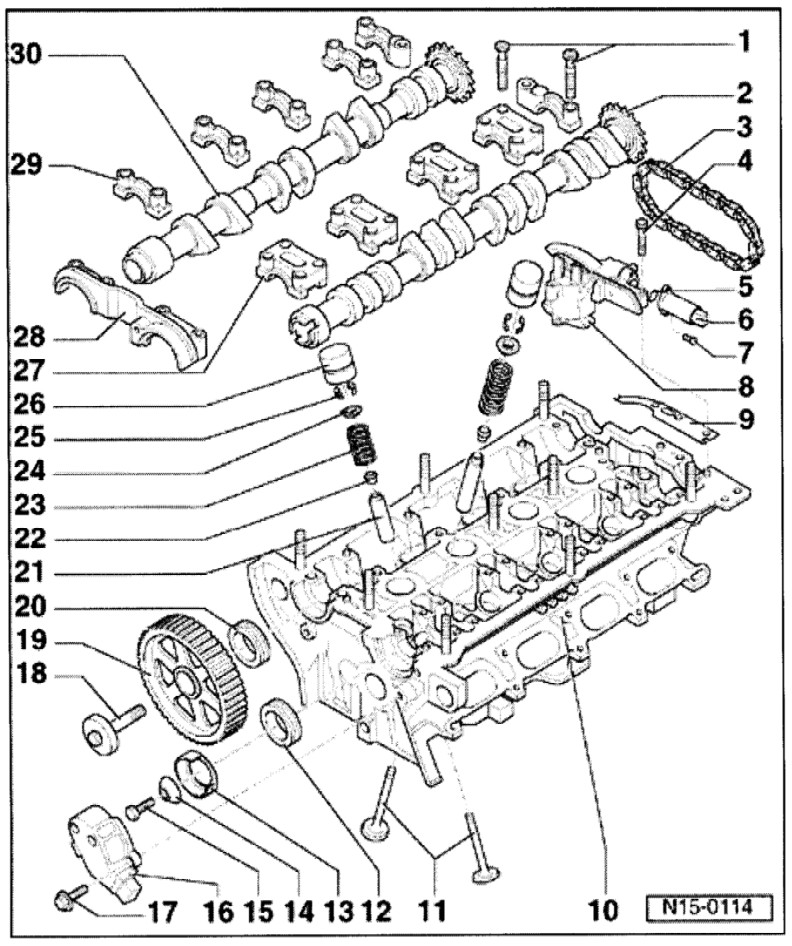

System Diagram

Valve train






1. 10 Nm
2. Intake camshaft
3. Drive chain
4. 10 Nm

5. O-ring
only for engines: AWP, AWV

6. Camshaft adjustment valve (N205)
only for engines: AWP, AWV

7. 3 Nm

8. Camshaft adjuster
only for engines: AWP, AWV
for vehicles with engine codes APH; Chain tensioner

9. Gasket
10. Cylinder head
11. Valves
12. Oil seal
13. Hood
14. Washer
15. 25 Nm
16. Camshaft - Position sensor - G40
17. 10 Nm
18. 65 Nm
19. Camshaft - sprocket
20. Oil seal
21. Valve guide
22. Valve stem seal
23. Valve spring
24. Upper valve spring plate
25. Valve keepers
26. Hydraulic lifter
27. Intake camshaft bearing cap
28. Double bearing cap
29. Exhaust camshaft bearing cap
30. Exhaust camshaft
