N292 Ignition Coil w/ Power Output Stage 4
N292 Ignition Coil w/ Power Output Stage 4

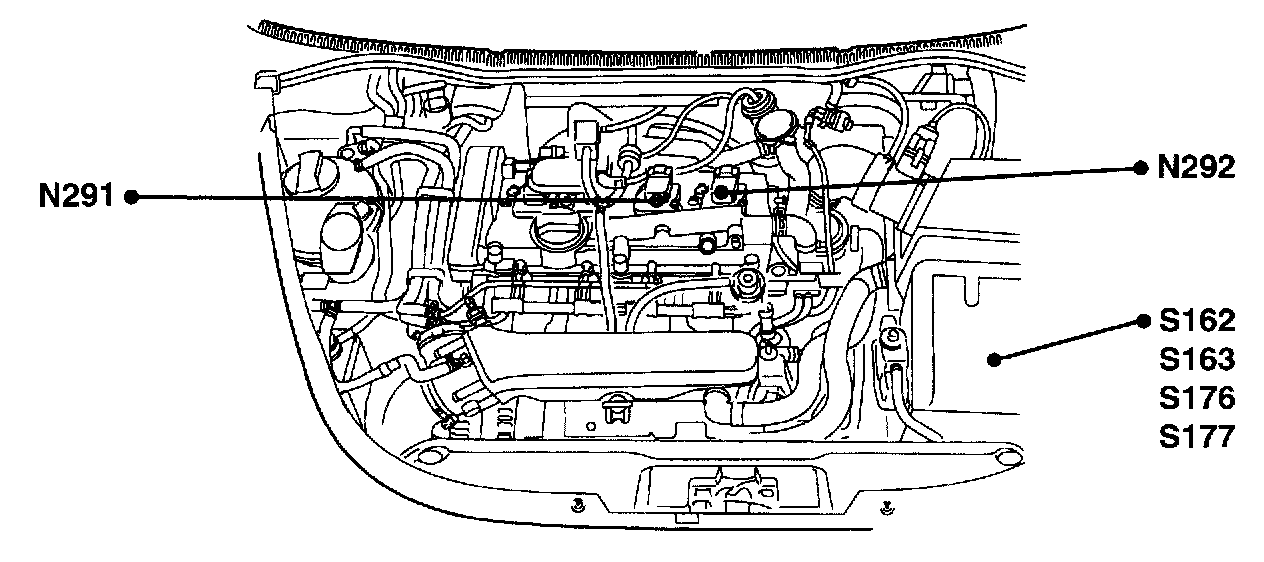

Component Location:

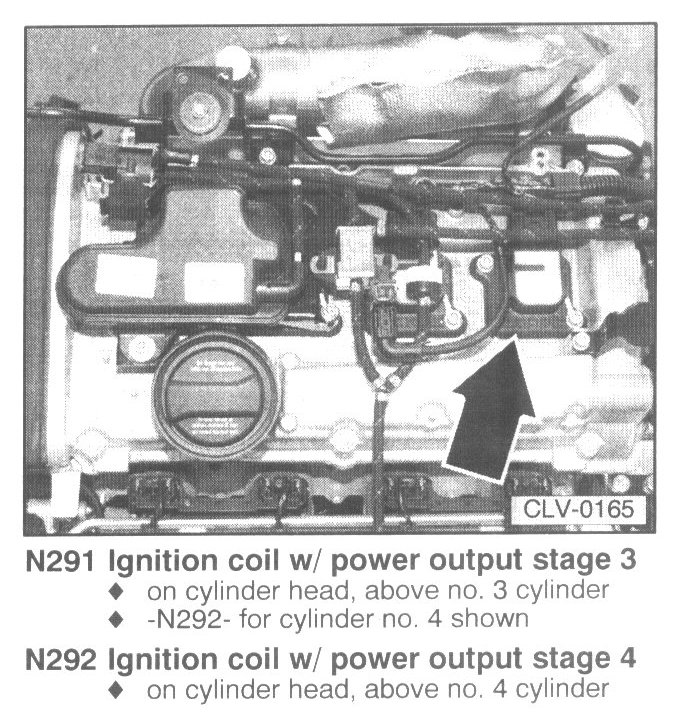

Component View:
Ignition Coil w/ Power Output Stage 4 N292
