Removing and Installing

Brake Master Cylinder, Removing And Installing
Special Tools And Equipment

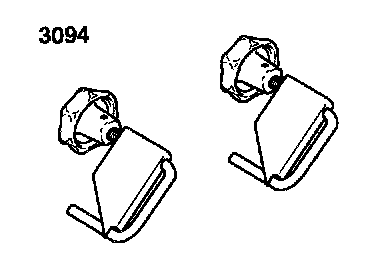

^ 3094 Hose clamps or equivalent

Removing
- Spread sufficient lint-free cloths in area of plenum chamber, and on engine and transmission to catch any escaping brake fluid.

- Using bleeder bottle, draw off as much brake fluid as possible from brake fluid reservoir .
- Clamp clutch master cylinder supply hose with clamp 3094 or equivalent.
- Remove clutch master cylinder supply hose from reservoir.
- Disconnect brake fluid level sensor wiring connector.
- Disconnect brake lines on brake master cylinder and seal with plugs from repair kit, Part No. 1 HO 698 311 A.
- Remove nuts securing brake master cylinder to brake booster.
- Carefully remove brake master cylinder from brake booster.

Installing
- Install master cylinder in reverse order of removal.

Note:
^ When connecting brake master cylinder and brake booster be sure that the push rod is correctly located in the master cylinder.
^ After installing, bleed brakes. Refer to Brake Bleeding
