Steering Column Lower Trim, Removing

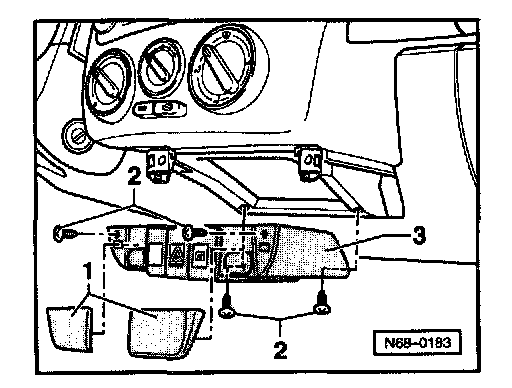

- Pry off covers -1- and remove screws -2-.
- Remove switch mount -3- from bracket.

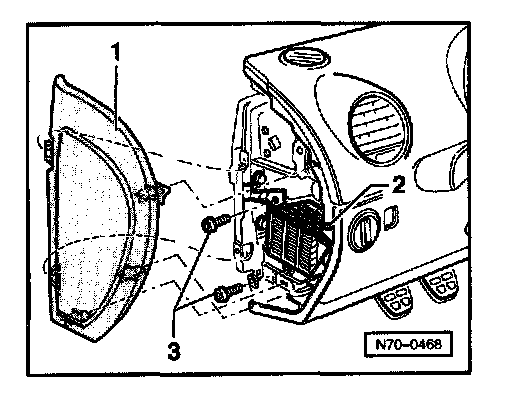

- Release cover -1- from clips -2- and from instrument panel.
- Loosen right side cover -1- mounting clips -2- and remove cover from instrument panel.
- Remove screws -3-.

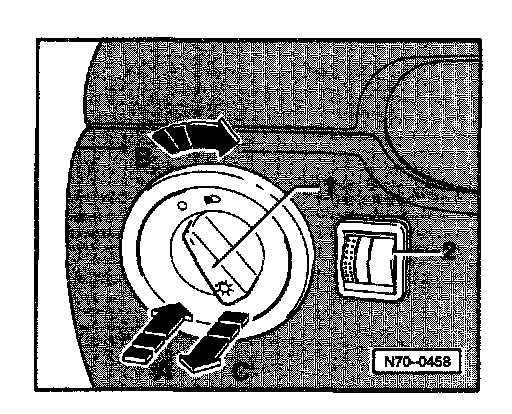

- Turn knob -1- for light switch to "0" position.
- Push knob in (arrow -A-) and turn to right (arrow -B-).
- Pull switch out of instrument panel (arrow -C-) and disconnect wiring connectors.
- Unclip switch -2- for instrument illumination control and disconnect wiring connector.

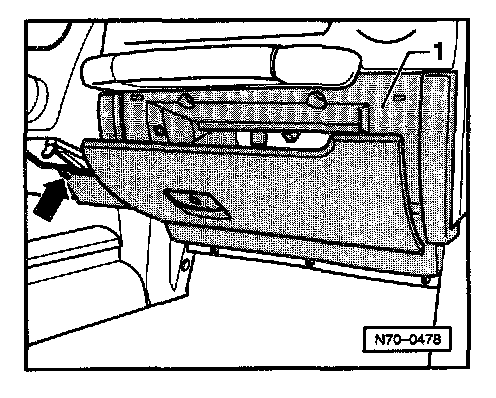

- Remove screw under cap (arrow) of glove box -1-.

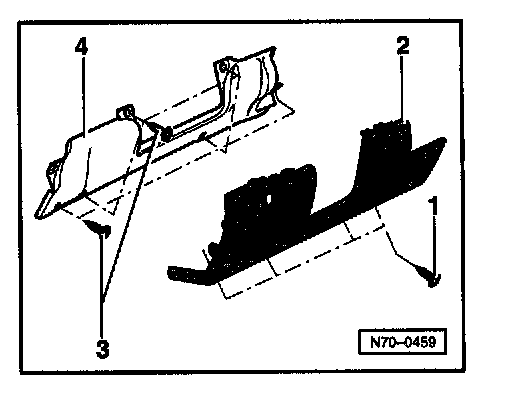

- Remove screws -1-.
- Unclip top of trim -2- and remove from instrument panel.
- Remove screws -3-.
- Remove kneebar -4-.
